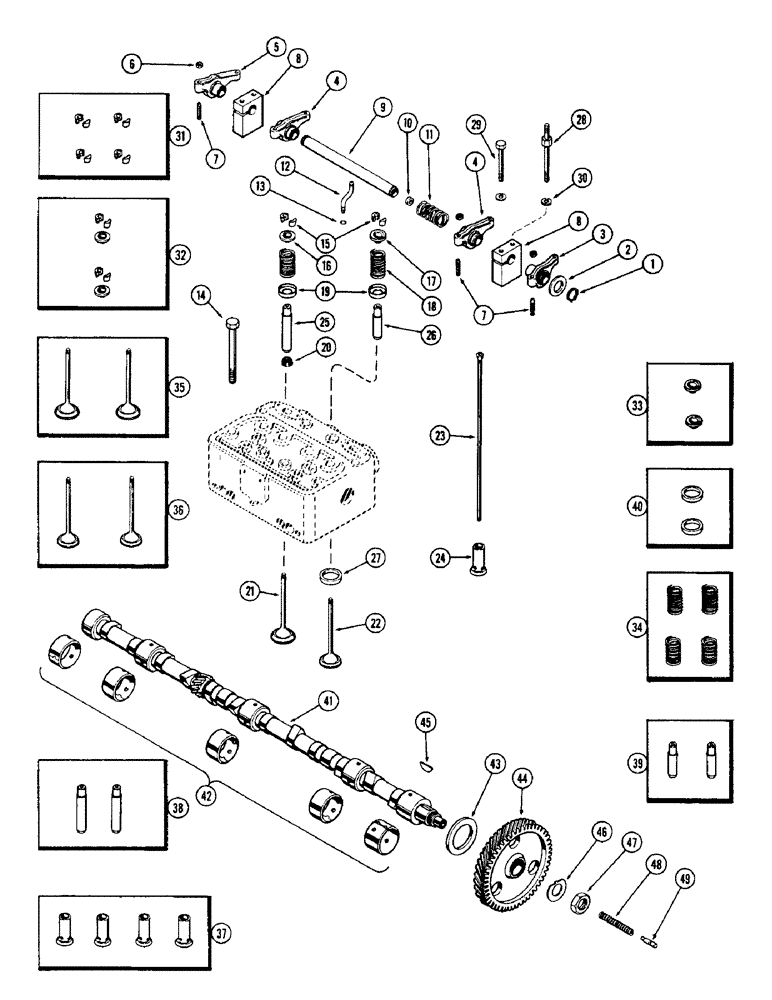

Запчасти Case 1150 (009A) - VALVE MECHANISM AND CAMSHAFT, (401) DIESEL ENGINE (01) - ENGINE

1

B18206

SNAP RING,#87, Ext

RING, Snap, , shaft end #87, Ext

6шт.

2

A27878

WASHER

- rocker arm

1шт.

3

A22324

ROCKER

ARM ASSY. - rocker, exh. valve (#1, 3 & 5 cyl.)

3шт.

4

A22322

ROCKER

ARM ASSY. - rocker, int. valve, Includes: Ref. 6,7

6шт.

5

A22326

ROCKER

ARM ASSY. - rocker, exh. valve (#2, 4 & 6 cyl.), Includes: Ref. 6,7

3шт.

6

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F., hex.

1шт.

7

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

8

A27881

BRACKET

- shaft, rocker arm

6шт.

9

A21100

SHAFT

ASSY. - rocker arm, Includes: Ref. 10

3шт.

10

A22318

PLUG - end, rocker shaft

2шт.

11

A27877

SPRING

- rocker arm shaft

3шт.

12

A27879

TUBE

- oil, rocker arm shaft

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube

3шт.

14

A23355

BOLT

- mtg., cyl., Serial Range: head-block

27шт.

15

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order ref. 31)

3шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - int. valve (Order ref. 32)

3шт.

17

NSS

NOT SOLD SEPARAT

ROTO-CAP - exh. valve (Order ref. 33)

3шт.

18

NSS

NOT SOLD SEPARAT

SPRING - int. & exh. valve (Order ref. 34)

3шт.

19

A27866

SEAT

- spring, int & exh. valve

12шт.

20

A10726

SEAL

SHIELD - vavle stem, intake

6шт.

21

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 35)

3шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 36)

3шт.

23

A21060

ROD

- push, valve & rocker arm

12шт.

24

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 37)

3шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - int. valve (Order ref. 38)

1шт.

26

NSS

NOT SOLD SEPARAT

GUIDE KIT - exh. valve (Order ref. 39)

1шт.

27

NSS

NOT SOLD SEPARAT

INSERT - exh. valve (Order ref. 40)

1шт.

28

A28124

STUD - cyl. head cover and rocker bracket

6шт.

29

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

6шт.

30

92-7

LOCK WASHER,7/16"

12шт.

31

A40352

LOCK

KIT - valve spring (Set of 8)

3шт.

32

A21657

LOCK

RETAINER SET - int. valve (Set of 2 ret. & 4 locks)

3шт.

33

A24993

CAP

ROTO-CAP KIT - exh. valve (Set of 2)

3шт.

34

A21694

SPRING

KIT - int. & exh. valve (Set of 4)

3шт.

35

A40351

KIT

VALVE KIT - intake (Set of 2)

3шт.

36

A24770

VALVE

KIT - exhaust (Set of 2)

3шт.

37

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.

38

A21671

GUIDE

KIT - int. valve (Set of 2)

1шт.

39

A21674

GUIDE

KIT - exh. valve (Set of 2)

1шт.

40

A21681

KIT

INSERT KIT - exh. valve (Set of 2)

1шт.

41

A34968

X

CAMSHAFT - engine, w/cast gear (Used w/A34940 oil pump) (1st used eng. s/n 2174169)

1шт.

41

A33839

CAMSHAFT

- engine, w/steel gear (Used w/A34008 oil pump) (Used prior to eng. s/n 2174169)

1шт.

42

A23544

BUSHING

KIT - camshaft (Set of 5)

1шт.

43

A21017

WASHER

- thrust, camshaft

1шт.

44

A22604

GEAR

- camshaft

1шт.

45

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

46

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

47

A26445

NUT

- retainer, camshaft gear

1шт.

48

CASA27853

SPRING

- camshaft plunger

1шт.

49

A27852

PLUNGER

- thrust, camshaft

1шт.
