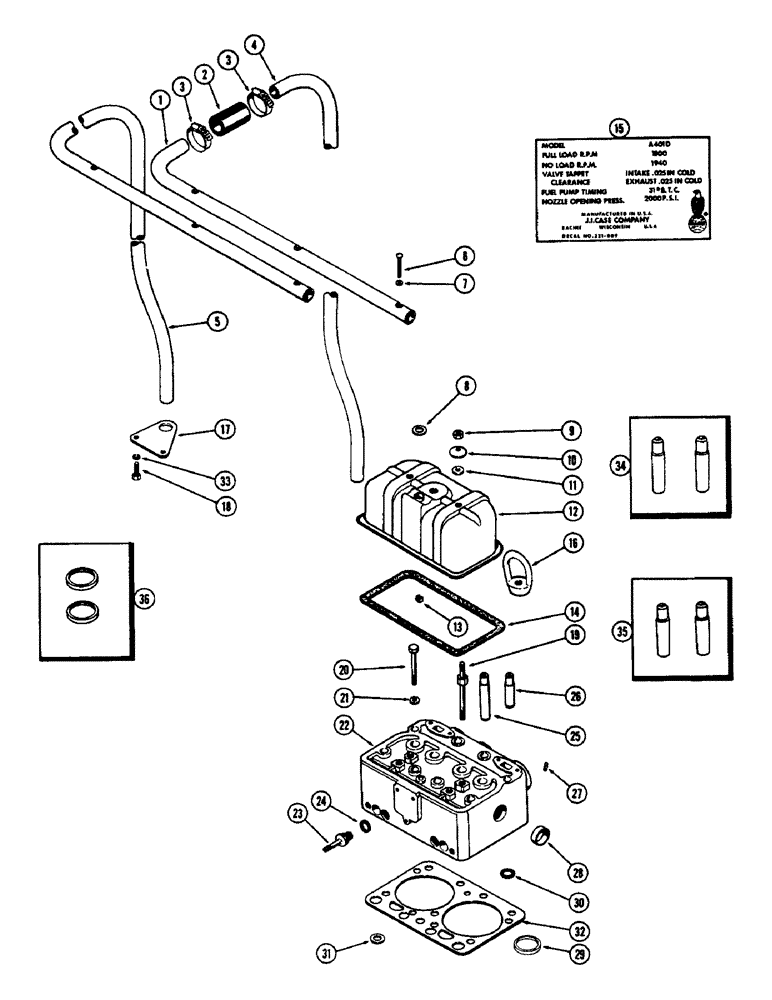

Запчасти Case 1150 (008) - CYLINDER HEAD ASSEMBLY, (401) DIESEL ENGINE (01) - ENGINE

1

A34778

TUBE

- breather, upper (2 piece tube)

1шт.

2

A34777

HOSE

- breather, tube connection

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 x 1-3/4"

2шт.

4

A24779

TUBE - breather, lower (2 piece tube)

1шт.

5

A24184

TUBE

- breather, blow-by (1 piece tube)

1шт.

6

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- mach. 1/4" x 2-1/4" rd. hd.

3шт.

7

A34133

GASKET

- breather screw

3шт.

8

A23685

GASKET

-, Serial Range: breather-cover

3шт.

9

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex.

6шт.

10

A23683

WASHER

- bevel, cover nut

6шт.

11

A23684

GASKET

GASKET - cover stud nut

6шт.

12

A23681

COVER ASSY

. - cylinder head

3шт.

13

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" - 20 Tinnerman

1шт.

14

A27972

CYLINDER HEAD GASKET

- mtg., cyl. head cover

3шт.

15

321-809

DECAL - engine data, cyl. hd. cover

1шт.

16

A22689

NUT

- eye, engine lifting

2шт.

17

A23686

BRACKET

- breather tube

1шт.

18

A9936

BOLT - breather, Serial Range: bracket-pan

2шт.

19

A28124

STUD - cyl. hd. cover and rocker bracket

6шт.

20

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

6шт.

21

92-7

LOCK WASHER,7/16"

12шт.

22

A33643

HEAD (CYLINDER)

HEAD ASSY. - cylinder, Includes: Ref. 23-29

3шт.

23

A10678

STUD

- nozzle holder (Large)

2шт.

24

A10679

GASKET

- nozzle stud

2шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - int. valve (Order ref. 34)

1шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - exh. valve (Order ref. 35)

1шт.

27

A27898

PIN - locating pin, powrcel

2шт.

28

A34124

PLUG,Cup, 1 5/8", Stainless

- expansion, cyl. head

2шт.

29

NSS

NOT SOLD SEPARAT

INSERT - exh. valve (Order ref. 36)

1шт.

30

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil pressure

3шт.

31

A7669

RING

GASKET - cyl. head water passage (Rubber)

6шт.

32

A23118

GASKET

- mtg., cyl., Serial Range: head-block

3шт.

33

195-25

WASHER,3/8"

- lock, 3/8"

2шт.

34

A21671

GUIDE

KIT - int. valve (Set of 2)

1шт.

35

A21674

GUIDE

KIT - exh. valve (Set of 2)

1шт.

36

A21681

KIT

INSERT KIT - exh. valve (Set of 2)

1шт.
