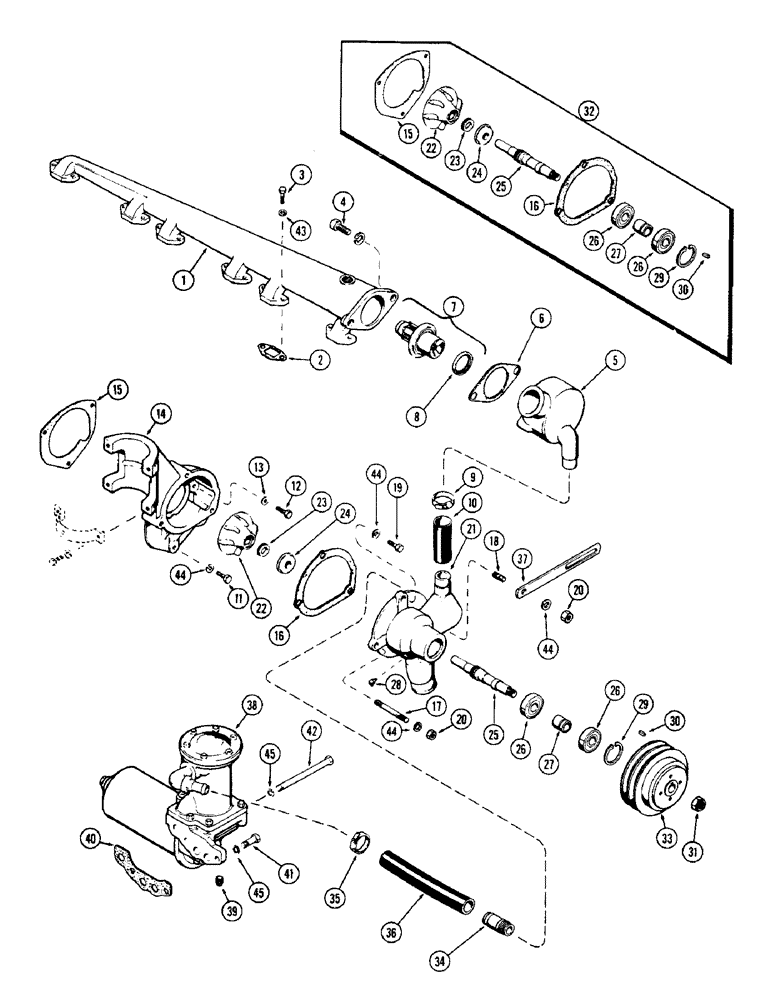

Запчасти Case 1150 (004) - WATER PUMP AND OIL COOLER SYSTEM, (401) DIESEL ENGINE (01) - ENGINE

1

A11419

HOSE ASSY.

MANIFOLD - water

1шт.

2

A27905

GASKET

- water manifold mtg.

6шт.

3

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

12шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

5

A34002

HOUSING

- thermostat

1шт.

6

A11421

GASKET

- thermostat housing

1шт.

7

A7634

THERMOSTAT

ASSY - water (180 degrees to 195 degrees), Includes: Ref. 8

1шт.

8

A11423

SEAL

- thermostat

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

10

A28115

HOSE

- water, by-pass

1шт.

11

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

13

A22317

WASHER

- adpt. mtg. (Copper)

1шт.

14

A22583

ADAPTER

- water pump & final fuel filter

1шт.

15

1342741C1

GASKET

- adapter mounting

1шт.

16

A22600

GASKET

- water pump mounting

1шт.

17

A33997

STUD

- mtg., water pump &, Serial Range: adpt.-blk.

1шт.

18

A7391

STUD

- generator strap mtg.

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

2шт.

21

A34009

PUMP

ASSY - water, Includes: Ref. 22-31

1шт.

22

A33999

IMPELLER

- water

1шт.

23

A34000

SEAL

SEAT ASSY - impeller

1шт.

24

A24995

SEAL

- pump shaft

1шт.

25

A21044

SHAFT

- water pump

1шт.

26

A21045

BALL BEARING,19.99mm ID x 47mm OD x 14mm W

BEARING - pump shaft

2шт.

27

A24600

SPACER

- bearing

1шт.

28

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 67-1/2 degrees

1шт.

29

A22572

SNAP RING,1.85", Int, #185

Ring, Snap, , brg 1.85", Int, #185

1шт.

30

A21075

KEY

-, Serial Range: pulley-shaft

1шт.

31

131-580

LOCK NUT,5/8"-18

NUT - flex thin, 5/8" N.F., hex

1шт.

32

A40744

KIT

REPAIR KIT - water pump

1шт.

33

A34115

PULLEY

- water pump & fan

1шт.

34

A16529

NIPPLE, LUBE

NIPPLE - water pump to cooler hose

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

36

A21093

HOSE,9.75", SAE 20R4

1.00" ID x or SAE 20R2, Water Pump to Cooler 9.75", SAE 20R4

1шт.

37

A21108

STRAP

- adjusting, generator

1шт.

38

NS

NOT SERVICED

COOLER & FILTER ASSY. - oil (Repairs, Figure 006)

1шт.

39

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" sq. hd.

1шт.

40

A21084

GASKET

- cooler &, Serial Range: filter-block

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

42

15-888

BOLT

- 1/2" x 5-1/2" N.C., hex.

1шт.

43

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

12шт.

44

92-6

LOCK WASHER,3/8"

6шт.

45

92-8

LOCK WASHER,1/2"

2шт.
