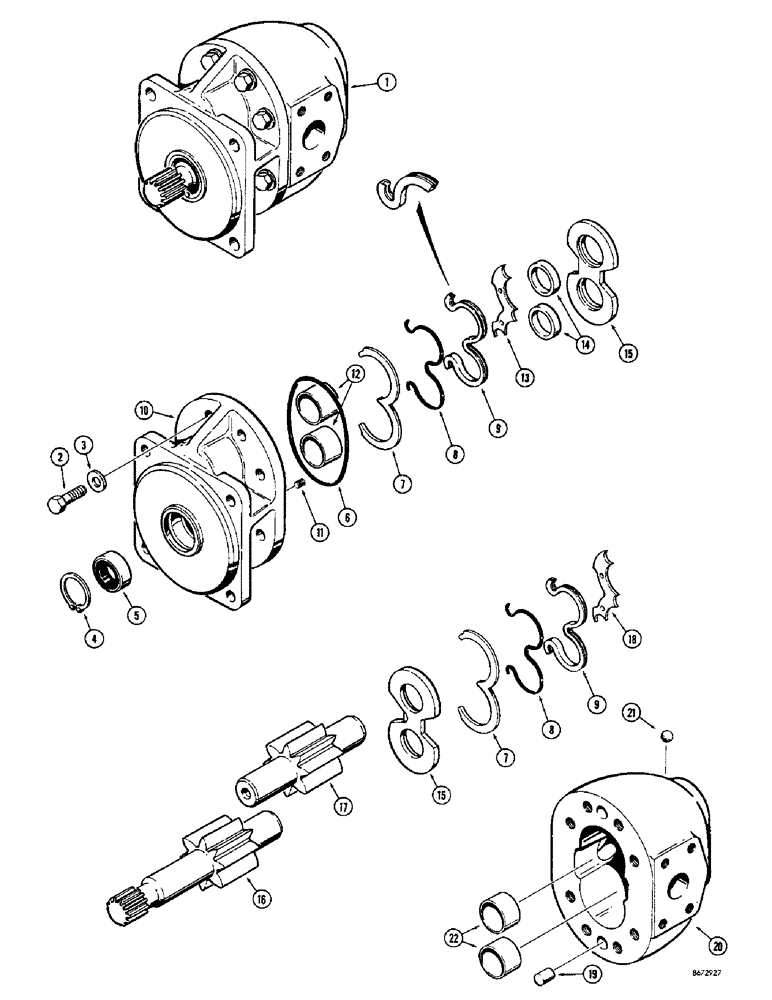

Запчасти Case 1150 (236) - D40285 DOZER PUMP (07) - HYDRAULIC SYSTEM

1

D40285

PUMP - hydraulic, 45 G.P.M. at 1800 R.P.M. at 2000 P.S.I. (Tyrone #20300-CG) Used on tractor serial no. 7107909 and after, Includes: Ref. 2-22

1шт.

2

113-405

X

HHCS - 1/2" - 13 NC x 1-1/4"

8шт.

3

D41413

WASHER

- special

8шт.

D41406

GASKET KIT

KIT - pump seal, rebuild, Includes: Ref. 4-9

1шт.

4

D41419

RING

- snap

1шт.

5

D41418

SEAL

- drive shaft

1шт.

6

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

SEAL - "O" ring, cover

1шт.

7

D44102

RING

- retaining

2шт.

8

D44103

SEAL

- "O" ring, strip

2шт.

9

D44099

RING

- backup

2шт.

D41405

NO LONGER SERVICED

COVER ASSEMBLY - pump, Includes: Ref. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

12

D42855

BUSHING

- shaft

2шт.

13

D44101

PLATE

- isolation, square edge

1шт.

14

D43769

RING - steel

2шт.

15

D41409

PLATE

- pressure (When stock is exhausted, order D42856 plate for service)

2шт.

D42856

PLATE

- pressure

2шт.

D43030

GEAR

SHAFT AND GEAR SET - drive and driven, Includes: Ref. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

18

D44100

PLATE

- isolation, round edge

1шт.

19

D41414

PIN

DOWEL -, Serial Range: body-cover

2шт.

D41404

BODY

ASSEMBLY - pump, Includes: Ref. 20-22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

21

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

22

D42855

BUSHING

- shaft

2шт.
