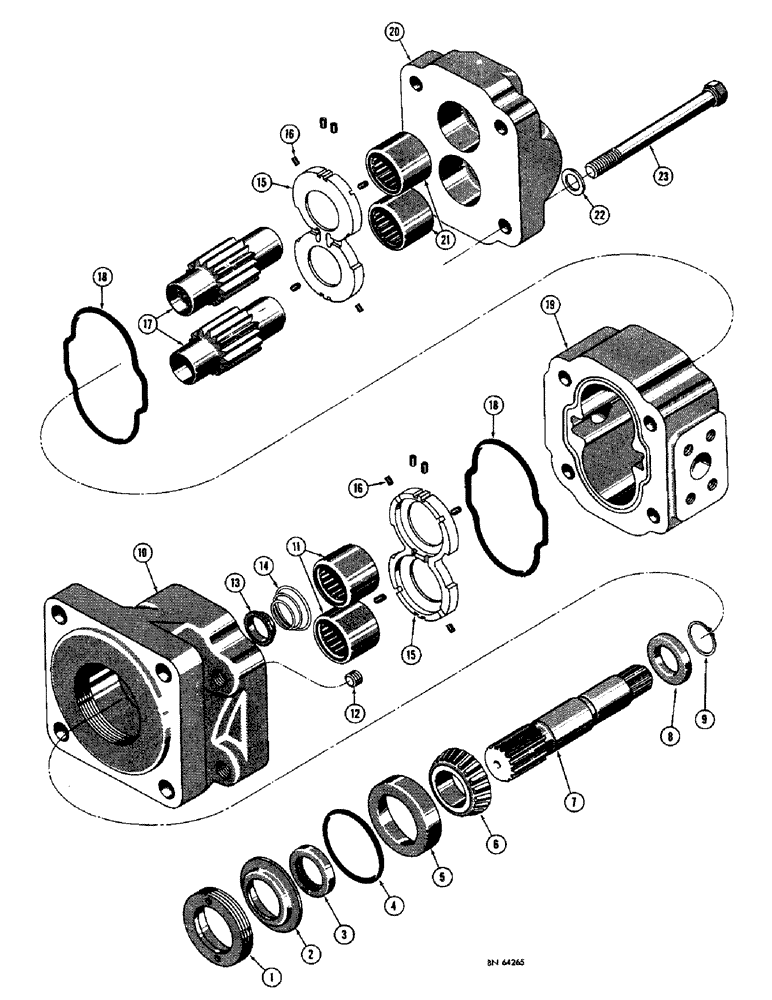

Запчасти Case 1150 (234) - D35994 DOZER PUMP (07) - HYDRAULIC SYSTEM

D35994

HYDRAULIC PUMP

PUMP - hydraulic, 31 GPM at 1800 RPM at 2000 P.S.I. (Commercial shearing #D-P25X-3) Used before tractor serial no. 7107909, Includes: Ref. 1-23

1шт.

1

D31944

RETAINER

- seal and bearing

1шт.

2

D31946

RETAINER

- seal

1шт.

3

D31945

SEAL

- oil

1шт.

4

D31947

O-RING

SEAL - "O" ring

1шт.

5

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - roller bearing

1шт.

6

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - roller bearing

1шт.

7

D31958

SHAFT

- drive

1шт.

8

D31950

SPACER

- driveshaft

1шт.

9

D31951

SNAP RING

RING - snap

1шт.

D31940

COVER ASSEMBLY - shaft end, Includes: Ref. 10-17

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

11

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller, Includes: Ref. 12

2шт.

12

83-76

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW - set, hex. socket (6/16" - 14 NC x 3/8")

1шт.

13

D31952

BUSHING

- shaft

1шт.

14

D31953

VALVE SPRING

SPRING - pump

1шт.

15

D31955

PLATE

- thrust

2шт.

16

D35673

SEAL

- pocket, strip (4-3/4" x 3/32" dia.) Cut to proper length as required for service

1шт.

17

D38815

GEARS - matched set (Drive and driven)

1шт.

18

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

SEAL - "O" ring (When stock is exhausted, order D41391 "O" ring for service)

2шт.

D41391

O-RING

SEAL - "O" ring, Includes: Ref. 19-23

2шт.

19

D38816

HOUSING - gear

1шт.

D31941

COVER ASSEMBLY - port end, Includes: Ref. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

21

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

22

D31957

WASHER

- plain

4шт.

23

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

HHCS - 5/8" - 11 NC x 5"

4шт.
