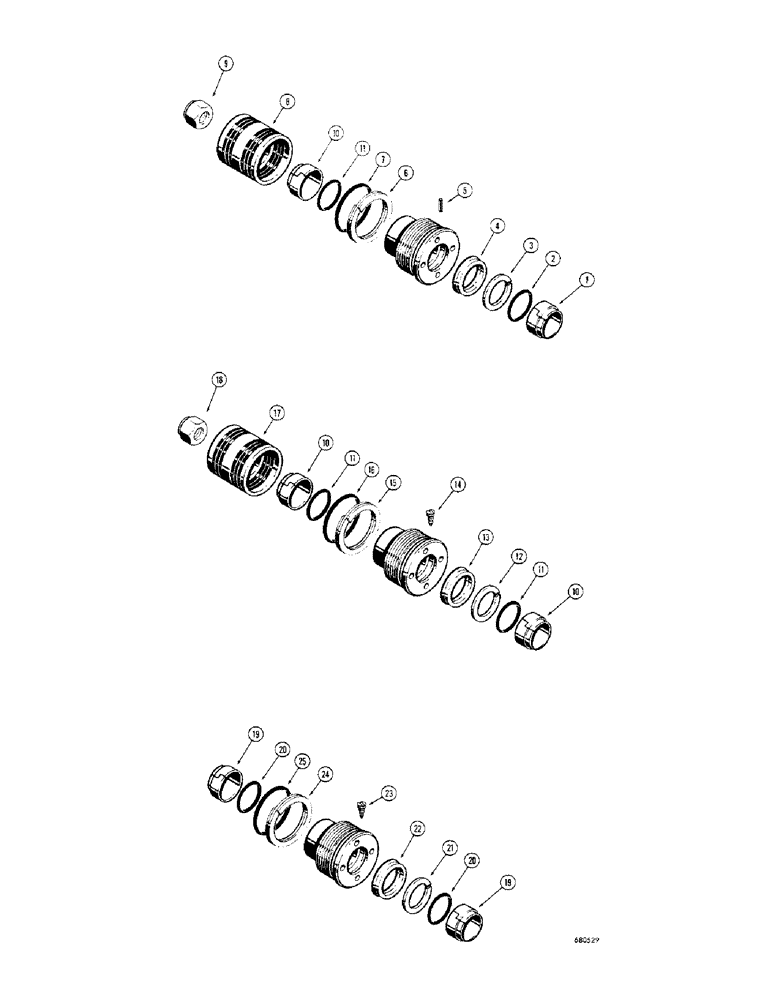

Запчасти Case 1150 (230) - CYLINDER PACKING KITS, 4" CYLINDER TUBE I.D. X 2" PISTON ROD, D30134 CYLINDER PACKING KIT (07) - HYDRAULIC SYSTEM

D30134

X

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42876 kit for service), Includes: Ref. 1-9

1шт.

1

D27380

SCRAPER RING

WIPER - piston rod

2шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1шт.

4

D28496

PACKING - piston (When stock is exhausted, use D36971 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

PIN, , use 187-1031 screw for service 3/16" x 5/8", Slotted

1шт.

6

D27382

RING

- backup, gland seal

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

8

D28376

SEAL

PACKING - piston rod (When stock is exhausted, order D36964 packing for service)

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

D37358

GLAND

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42876 kit for service), Includes: Ref. 10-18

1шт.

10

D27380

SCRAPER RING

WIPER - piston rod, D37358 cylinder packing kit

2шт.

11

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D37358 cylinder packing kit

2шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod, D37358 cylinder packing kit

1шт.

13

D36971

RING

SEAL - piston rod, D37358 cylinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D37358 cylinder packing kit

1шт.

15

D36095

BACK-UP RING

- backup, gland seal, D37358 cylinder packing kit

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D37358 cylinder packing kit

1шт.

17

D36964

PACKING

- piston, D37358 cylinder packing kit

1шт.

18

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , D37358 cylinder packing kit 1 1/4"-12, GB

1шт.

D42876

GLAND

KIT - gland packing, Includes: Ref. 19-25

1шт.

Complete cylinder packing kits are no longer furnished. If complete cylinder packing kit is required, order one D47209 piston packing ring and (2) D47204 packing vees with D42876 gland kit.

1шт.

19

D27380

SCRAPER RING

WIPER - piston rod, D42876 cylinder packing kit

2шт.

20

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D42876 cylinder packing kit

2шт.

21

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal, D42876 cylinder packing kit

1шт.

22

D36971

RING

SEAL - piston rod, D42876 cylinder packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42876 cylinder packing kit

1шт.

24

D27382

RING

- backup, gland seal, D42876 cylinder packing kit

1шт.

25

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D42876 cylinder packing kit

1шт.
