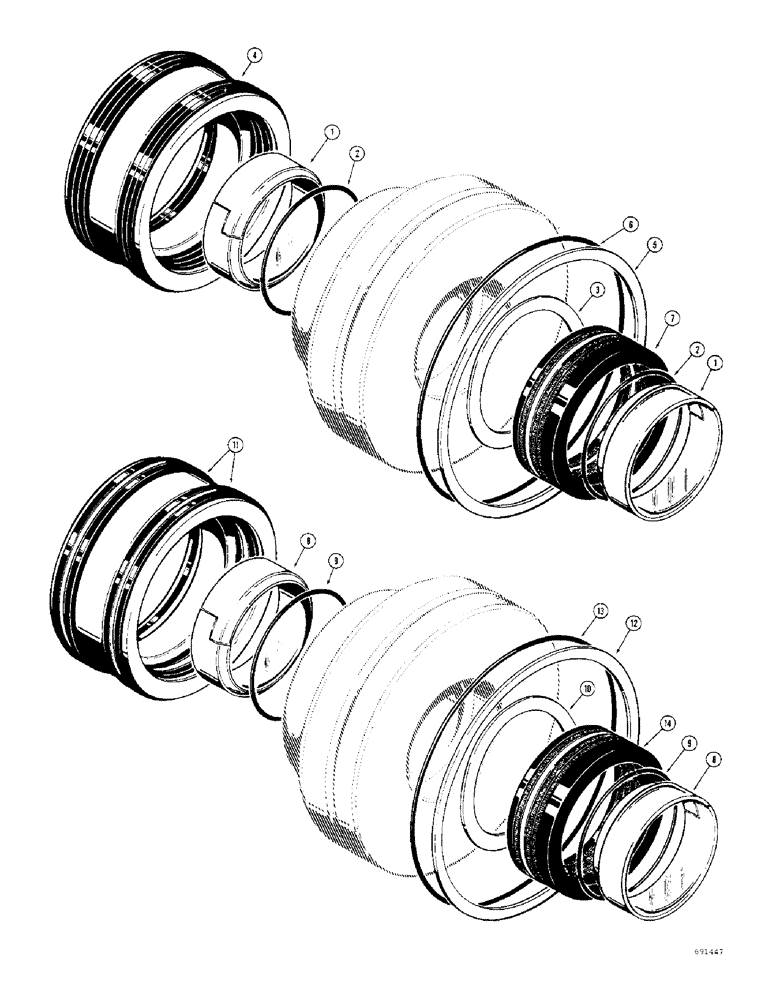

Запчасти Case 1150 (226) - CYLINDER PACKING KITS, 5-1/2" CYLDR. TUBE I.D. X 2-1/2" PISTON ROD O.D., D38363 CYLINDER PACKING KIT (07) - HYDRAULIC SYSTEM

D38363

KIT

- complete cylinder packing (When stock is exhausted, use D41403 kit for service), Includes: Ref. 1-7

1шт.

1

D36165

SEAL

WIPER - piston rod

2шт.

2

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

3

D36172

WASHER

RING - backup, piston rod seal

1шт.

4

D36907

PACKING - piston (When stock is exhausted, use - 2 D47207 packings and D47212 packing ring for service)

1шт.

5

D42454

RING

- backup, gland seal

1шт.

6

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

7

D36108

PACKING

- piston rod

1шт.

D41403

KIT

- complete cylinder packing (When used in models without packing ring order D47212 packing ring), Includes: Ref. 8-14

1шт.

8

D36165

SEAL

WIPER - piston rod, D41403 cylinder packing kit

2шт.

9

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D41403 cylinder packing kit

2шт.

10

D36172

WASHER

RING - backup, gland seal, D41403 cylinder packing kit

1шт.

11

D47207

GASKET KIT

PACKING - piston, D41403 cylinder kit

2шт.

12

D42454

RING

- backup, piston rod packing, D41403 cylinder kit

1шт.

13

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

SEAL - "O" ring, gland, D41403 cylinder packing kit

1шт.

14

D36108

PACKING

- piston rod, D41403 cylinder kit

1шт.
