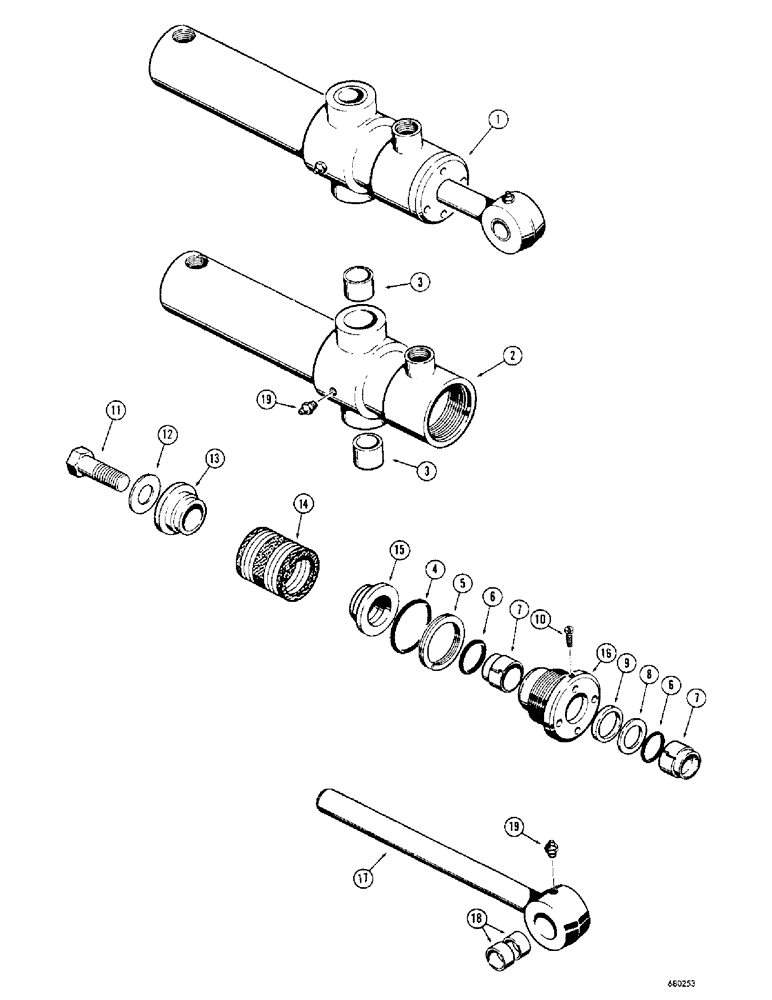

Запчасти Case 1150 (222) - D36345 RIPPER CYLINDER (07) - HYDRAULIC SYSTEM

1

D36345

CYLINDER - hydraulic, ripper (4" I.D. x 13" stroke), Includes: Ref. 2-19

1шт.

2

D36433

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

D42876

GLAND

KIT - packing, gland type cylinder, Includes: Ref. 4-10

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

5

D27382

RING

- backup, gland seal

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring wiper (Use with D27386 gland)

2шт.

7

D27380

SCRAPER RING

WIPER - rod

2шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

11

D31642

BOLT

- special

1шт.

12

D36434

WASHER

- bolt

1шт.

13

D28370

PISTON

- split, bolt end

1шт.

14

D36964

PACKING

- piston

1шт.

15

D28371

PISTON

- split, eye end

1шт.

16

D27386

HEAD

GLAND - packing (When stock is exhausted, use D45071 gland)

1шт.

D45071

GLAND

- packing

1шт.

17

D36428

PISTON ROD

ROD - piston (2" dia.), Includes: Ref. 18

1шт.

18

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.
