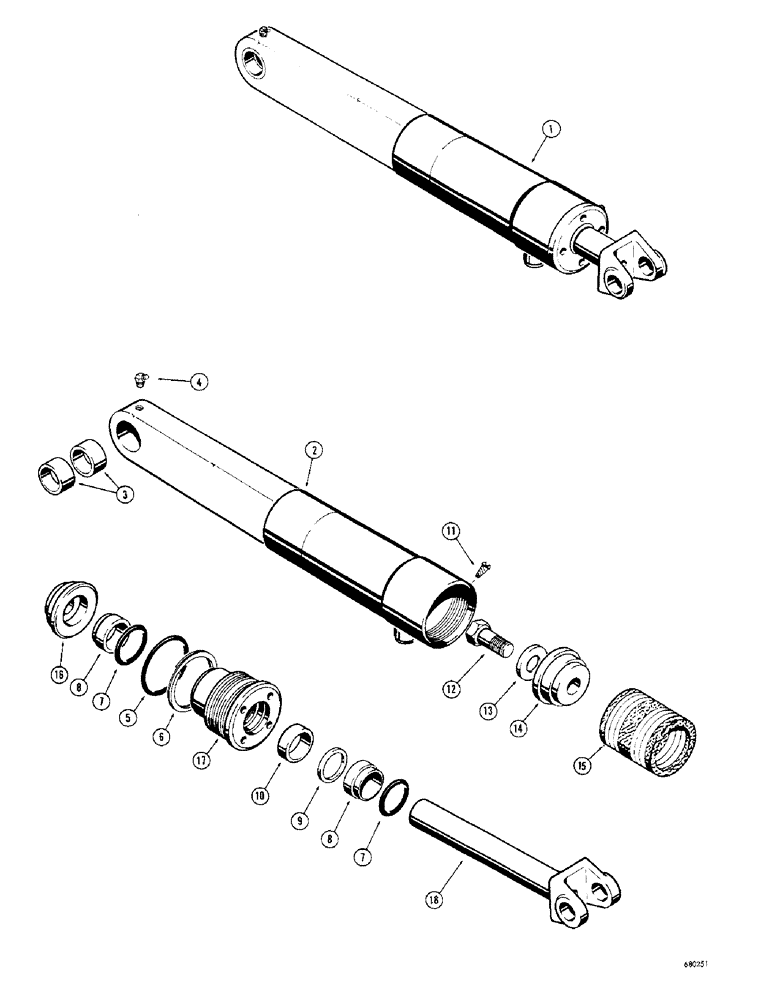

Запчасти Case 1150 (218) - D36182 POWER TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

D36182

KEY

CYLINDER - power tilt (3-1/2" I.D. x 4-3/16" stroke), Includes: Ref. 2-18

1шт.

2

D36339

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- tube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

D42873

GASKET KIT

KIT - packing, gland, Includes: Ref. 5-11

1шт.

5

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup

1шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (D27431 gland only)

2шт.

8

D27432

SHIM

- rod

2шт.

9

D28499

RING

- backup

1шт.

10

D36970

CUP

PACKING - piston rod

1шт.

11

197-1031

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

12

D32861

BOLT

- special

1шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28369

PISTON

- split, yoke end

1шт.

17

D27431

GLAND

- packing (When stock is exhausted, use D45069 gland)

1шт.

D45069

GLAND

- packing

1шт.

18

D36338

ROD ASSY.

ROD - piston (1-3/4" dia.)

1шт.
