(214) - D39349 ULRICH CLAM CYLINDER

Запчасти Case 1150 (214) - D39349 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM

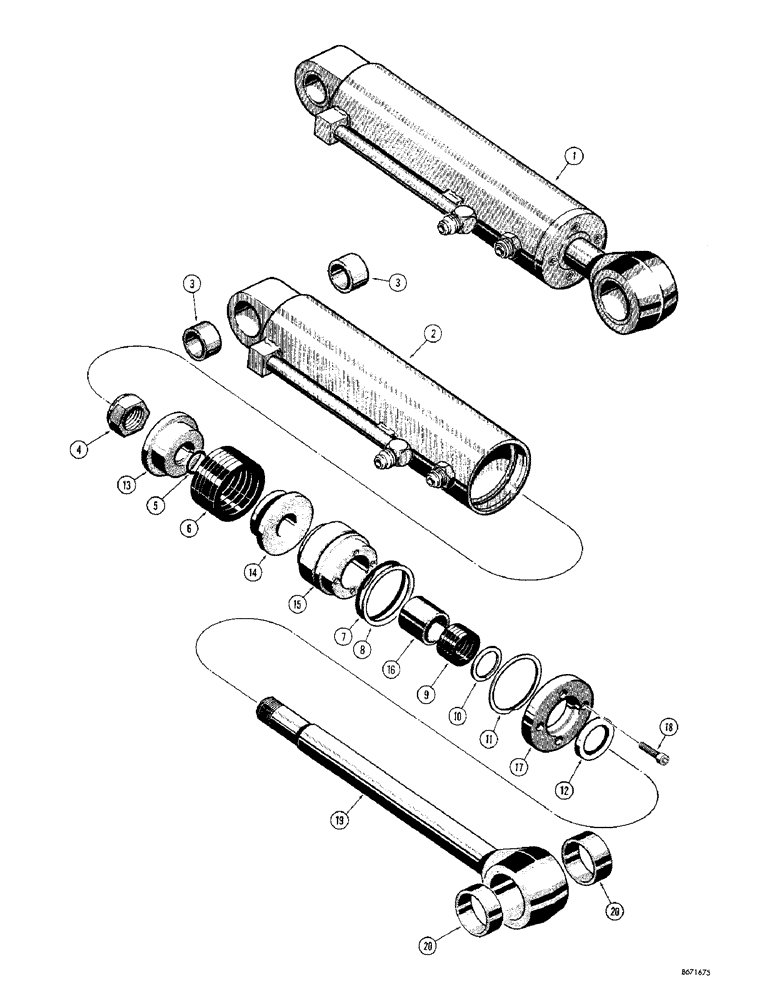

Схема запчастей Case 1150 - (214) - D39349 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM
17
13
5
20
8
15
18
10
20
19
6
1
12
3
7
3
16
11
14
9
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D39349

CYLINDER - hydraulic, clam (3-1/2" dia. x 9-1/4" stroke), Includes: Ref. 2-20

2шт.

2

D39351

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D39336

BUSHING - tube

2шт.

D38878

MISC PACKAGING

KIT - packing, gland type cylinder, Includes: Ref. 4-12

1шт.

4

131-41

LOCK NUT,1 1/4"-12, GB

NUT - lock, piston rod

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

6

D38865

PACKING

- piston

1шт.

7

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

9

D38861

PACKING

- gland

1шт.

10

D38860

SHIM,.030" Thk

Gland .030" Thk

1шт.

11

F13160

SNAP RING,#350, 3.716", Int, Spiral

RING - retainer

1шт.

12

D38856

WIPER

SEAL - wiper

1шт.

13

D38864

PISTON - half, nut end

1шт.

14

D38863

PISTON - half, eye end

1шт.

15

D38857

GLAND - cylinder

1шт.

16

D38862

BUSHING - gland

1шт.

17

D38854

CAP - cylinder

1шт.

18

D38855

X

SCREW - special

4шт.

19

D39350

ROD - piston (1-3/4" dia.), Includes: Ref. 20

1шт.

20

D39336

BUSHING - rod

2шт.
