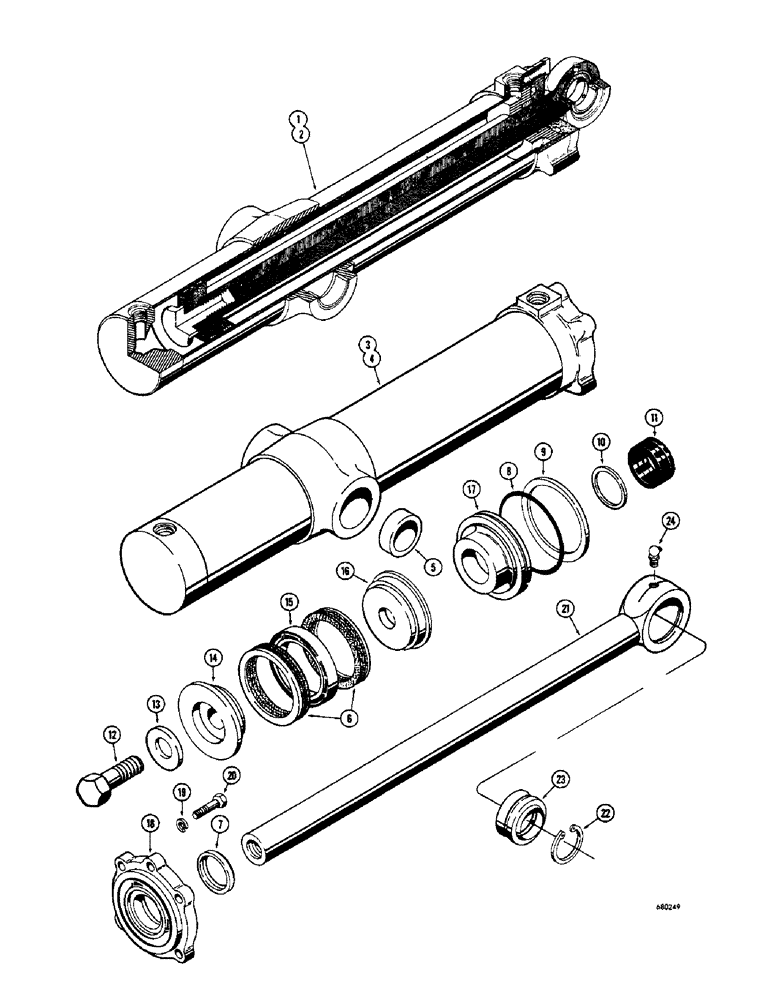

Запчасти Case 1150 (208) - D43352 AND D43353 LOADER LIFT CYLINDERS, *SERVICE REPLACEMENT ONLY (07) - HYDRAULIC SYSTEM

1

D43353

CYLINDER

- hydraulic, R.H. (Loader lift) 5-1/2" I.D. x 30-1/2" stroke

1шт.

2

D43352

CYLINDER

- hydraulic, L.H. (Loader lift) 5-1/2" I.D. x 30-1/2" stroke, Includes: Ref. 3-24

1шт.

3

D36153

TUBE - cylinder, R.H.

1шт.

4

D36154

TUBE

- cylinder, L.H., Includes: Ref. 5

1шт.

5

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

- tube

2шт.

D44117

KIT

- packing, gland type cylinder, Includes: Ref. 6-10

1шт.

6

D47207

GASKET KIT

PACKING - piston

2шт.

7

D43162

WIPER

- rod

1шт.

8

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D42454

RING

- backup

1шт.

10

D36172

WASHER

RING - backup, rod packing

1шт.

11

D36108

PACKING

BOLT - special, rod

1шт.

13

D36478

WASHER

- bolt

1шт.

14

D49165

PISTON

- split, bolt end

1шт.

15

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - piston packing

1шт.

16

D49164

PISTON

- split, rod end

1шт.

17

D43225

PACKING

GLAND - packing

1шт.

18

D43226

CAP

- cylinder end

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

20

114-621

BOLT

HHCS - 5/8" - 18 NF x 1-3/4"

5шт.

21

D36146

ROD

- piston (2-1/2" dia.), Includes: Ref. 22, 23

1шт.

22

NLS

NO LONGER SERVICED

3.156", Int, #315

2шт.

23

D23601

HOUSING

BUSHING - self-aligning

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
