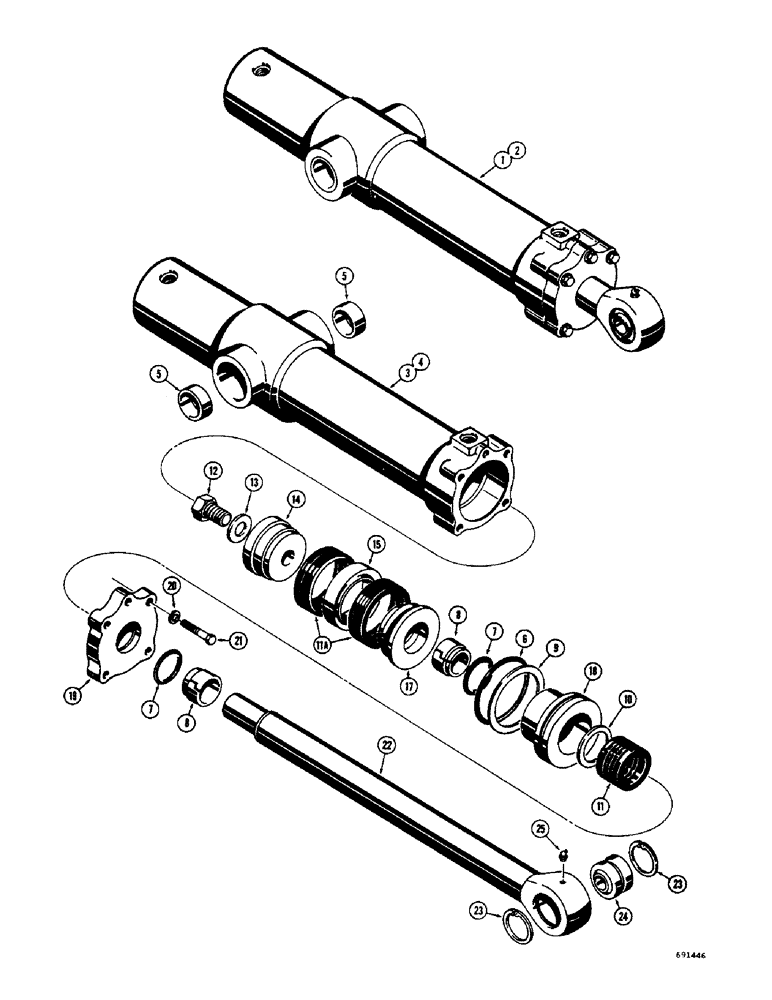

Запчасти Case 1150 (206) - D36168 AND D36169 LOADER LIFT CYLINDERS, *ORIGINAL EQUIPMENT (07) - HYDRAULIC SYSTEM

1

D36168

CYLINDER - hydraulic, R.H. loader lift (5-1/2" dia. x 30-1/2" stroke) When stock is exhausted, use D43353 cylinder for service - parts list Figure 208)

1шт.

2

D36169

RING

CYLINDER - hydraulic, L.H. loader lift (5-1/2" dia. x 30-1/2" stroke) When stock is exhausted, use D43352 cylinder for service - parts list figure 208), Includes: Ref. 2-25

1шт.

3

D36153

TUBE - cylinder, R.H.

1шт.

4

D36154

TUBE

- cylinder, L.H., Includes: Ref. 5

1шт.

5

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

- tube

2шт.

D41403

KIT

- packing, gland type (Order 1-D47212 packing ring for use in cyl. without packin ring), Includes: Ref. 6-11A

1шт.

6

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - piston

2шт.

7

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

8

D36165

SEAL

WIPER - rod

2шт.

9

D42454

RING

- backup

1шт.

10

D36172

WASHER

RING - backup, piston packing

1шт.

11

D36108

PACKING

- piston rod

1шт.

11a

D47207

GASKET KIT

PACKING - piston

2шт.

12

D36104

BOLT

- special

1шт.

13

D36478

WASHER

- special

1шт.

14

D36110

PISTON

- split, bolt end

1шт.

15

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - piston packing

1шт.

17

D36109

PISTON

- split, eye end

1шт.

18

D36167

GLAND - packing

1шт.

19

D36166

CAP - cylinder end

1шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

21

114-621

BOLT

HHCS - 5/8" - 18 NF x 1-3/4"

5шт.

22

D36146

ROD

- piston (2-1/2" dia.), Includes: Ref. 23, 24

1шт.

23

100-21315

SNAP RING,3.156", Int, #315

ROD - snap, CLAMP P-type, attaches to radiator fan shroud

2шт.

24

D23601

HOUSING

BUSHING - self-aligning

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
