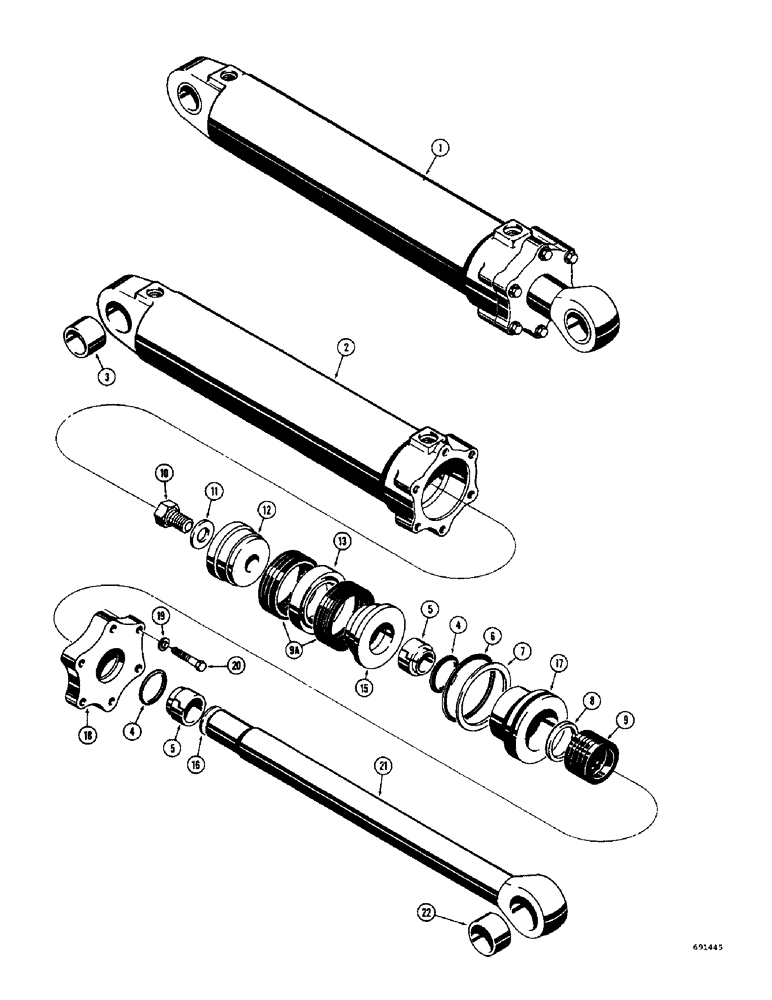

Запчасти Case 1150 (204) - D36320 LOADER DUMP CYLINDER (07) - HYDRAULIC SYSTEM

1

D36320

SNAP RING

- loader dump (5" I.D. x 23-1/2" stroke), Includes: Ref. 2-22

2шт.

2

D36319

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- tube

1шт.

D41402

KIT

- packing, gland type cyl. (Order 1-D47211 packing ring for use in cyl. without packing ring), Includes: Ref. 4-9A

1шт.

4

D27380

SCRAPER RING

SEAL - "O" ring, wiper

2шт.

5

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

WIPER - rod

2шт.

6

D36183

O-RING,5.109" ID x 5.387" OD

SEAL - "O" ring, gland

1шт.

7

D42453

RING

- backup

1шт.

8

D36181

WASHER

RING - backup, piston packing

1шт.

9

D36255

SEAL

PACKING - piston rod

1шт.

9a

D47206

PACKING

- piston, chevron

2шт.

10

D43994

SCREW,Hex, 1 1/4" - 12 x 3", Gr 8

BOLT - special, rod

1шт.

11

D36434

WASHER

- bolt

1шт.

12

D46932

PISTON

- split, bolt end

1шт.

13

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - piston packing

1шт.

15

D45475

PISTON ASSY.

PISTON - split, eye end

1шт.

16

D95036

WASHER

- special

1шт.

17

D36252

GLAND - packing

1шт.

18

D36253

CAP - cylinder end

1шт.

19

92-8

LOCK WASHER,1/2"

6шт.

20

114-424

X

HHCS - 1/2" - 20 NF x 1-3/4"

6шт.

21

D36249

ROD

- piston (2" dia.), Includes: Ref. 22

1шт.

22

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- rod

1шт.
