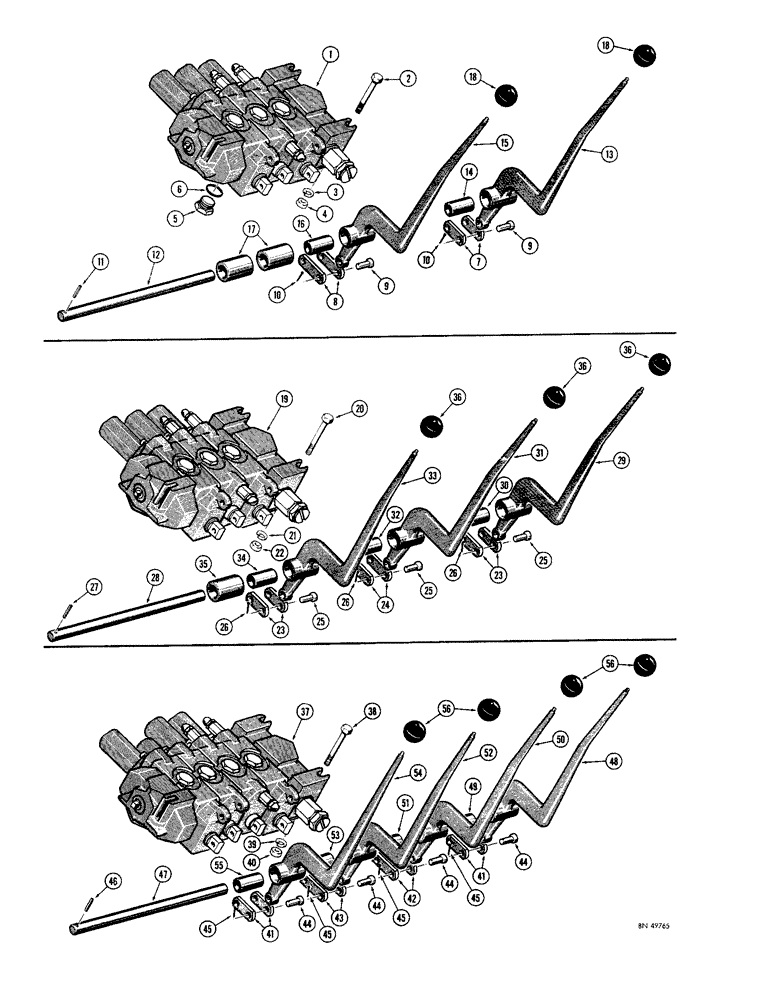

Запчасти Case 1150 (192) - EQUIPMENT CONTROL VALVES AND LEVERS (EARLY PRODUCTION), USED ON LOADER & DOZEN MODELS W/OUT RIPPER (07) - HYDRAULIC SYSTEM

1

D36224

VALVE - equipment control, loader models only (Parts list Figure 238) When stock is exhausted, order D41534 valve for service (Parts list Figure 238)

1шт.

D36226

VALVE - equipment control, dozer models only (Parts list Figure 240) When stock is exhausted, order D41536 valve for service (Parts list Figure 240)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve port, Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

R22269

LINK

- valve to inner control lever

2шт.

8

D38065

LINK - valve to outer control lever, loader models only

2шт.

D36230

LEVER

LINK - valve to outer control lever, dozer models only

2шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - link

4шт.

10

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

4шт.

11

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1-3/4", Slotted

1шт.

12

D36229

SHAFT - lever

1шт.

13

D36236

LEVER - control, inner, Includes: Ref. 14

1шт.

14

D36231

BUSHING

- lever

1шт.

15

D36237

LEVER - control, outer, Includes: Ref. 16

1шт.

16

D36231

BUSHING

- lever

1шт.

17

F62203

BUSHING

SPACER - lever

2шт.

18

70213

KNOB

- control lever

2шт.

19

D36224

VALVE - equipment control, only (Parts list Figure 238) When stock is exhausted, order D41534 valve for service (Parts list Figure 238), used on loader & dozer models w/ripper or counterweight w/clam type bucket

1шт.

D36226

VALVE - equipment control, only (Parts list figure 240) When stock is exhausted, order D41536 for service (Parts list Figure 240), used on loader & dozer models w/ripper or counterweight w/clam type bucket

1шт.

20

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Used on loader & dozer models w/ ripper or counterweight w/ clam type bucket Hex, 1/2"-13 x 4 1/2", G5

3шт.

21

92-8

LOCK WASHER,1/2"

used on loader & dozer models w/ ripper or counterweight w/ clam type bucket 1/2"

3шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

3шт.

23

R22269

LINK

- valve to inner and outer control levers, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

4шт.

24

D38065

LINK - valve to center control lever, only, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

4шт.

D36230

LEVER

LINK - valve to center control lever, only, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

2шт.

25

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - link, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

6шт.

26

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), , Used on loader & dozer models w/ ripper or counterweight w/ clam type bucket 1/8" x 1"

6шт.

27

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1-3/4", Slotted, Used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

1шт.

28

D36229

SHAFT - lever, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

1шт.

29

D36236

LEVER - control, inner, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket, Includes: Ref. 30

1шт.

30

D36231

BUSHING

- lever, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

1шт.

31

D36237

LEVER - control, center, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket, Includes: Ref. 32

1шт.

32

D36231

BUSHING

- lever, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

1шт.

33

D36238

LEVER ASSY.

used on loader & dozer models w/ ripper or counterweight w/ clam type bucket, Includes: Ref. 34

1шт.

34

D36231

BUSHING

- lever, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

1шт.

35

F62203

BUSHING

SPACER - lever, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

1шт.

36

70213

KNOB

- control lever, used on loader & dozer models w/ ripper or counterweight w/ clam type bucket

3шт.

37

D36227

VALVE - equipment control, loader ripper models with clam type bucket (Parts list Figure 242) When stock is exhausted, order D41535 valve for service (Parts list Figure 242)

1шт.

38

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Used on loader ripper models w/ clam type bucket Hex, 1/2"-13 x 4 1/2", G5

3шт.

39

92-8

LOCK WASHER,1/2"

used on loader ripper models w/ clam type bucket 1/2"

3шт.

40

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), used on loader ripper models w/ clam type bucket

3шт.

41

R22269

LINK

- valve to inner and outer control levers, used on loader ripper models w/ clam type bucket

4шт.

42

D38065

LINK - valve to L.H. center lever, used on loader ripper models w/ clam type bucket

2шт.

43

D36230

LEVER

LINK - valve to R.H. center lever, used on loader ripper models w/ clam type bucket

2шт.

44

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - link, used on loader ripper models w/ clam type bucket

8шт.

45

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), , Used on loader ripper models w/ clam type bucket 1/8" x 1"

8шт.

46

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, 3/16" x 1-3/4", Slotted, Used on loader ripper models w/ clam type bucket

1шт.

47

D36229

SHAFT - lever, used on loader ripper models w/ clam type bucket

1шт.

48

D36236

LEVER - control, inner, used on loader ripper models w/ clam type bucket, Includes: Ref. 49

1шт.

49

D36231

BUSHING

- lever, used on loader ripper models w/ clam type bucket

1шт.

50

D36237

LEVER - control, L.H. center, used on loader ripper models w/ clam type bucket, Includes: Ref. 51

1шт.

51

D36231

BUSHING

- lever, used on loader ripper models w/ clam type bucket

1шт.

52

D36238

LEVER ASSY.

LEVER - control, R.H. center, used on loader ripper models w/ clam type bucket, Includes: Ref. 53

1шт.

53

D36231

BUSHING

- lever, used on loader ripper models w/ clam type bucket

1шт.

54

D36239

LEVER - control, outer, used on loader ripper models w/ clam type bucket, Includes: Ref. 55

1шт.

55

D36231

BUSHING

- lever, used on loader ripper models w/ clam type bucket

1шт.

56

70213

KNOB

- control lever, used on loader ripper models w/ clam type bucket

4шт.
