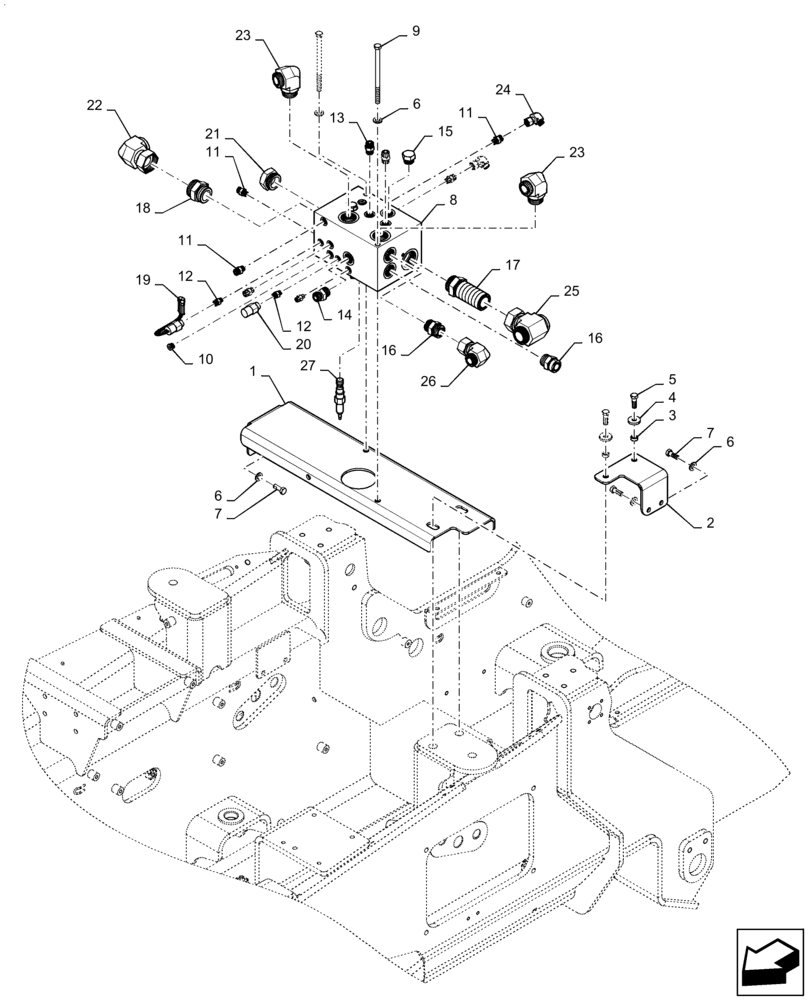

Запчасти Case 2050M XLT PAT (29.218.AO) - MANIFOLD VALVE (29) - HYDROSTATIC DRIVE

1

47678638

BRACKET

Manifold Valve, Upper

1шт.

2

47373897

BRACKET

Manifold Valve, Side

1шт.

3

47390029

SPACER,13.51mm ID x 19.05mm OD x 8mm L

Slip Joint

2шт.

4

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

5

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

6

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

13.65mm x 24.9mm x 3.2mm

6шт.

7

84523390

BOLT,Hex, M12 x 30mm, Cl 10.9

M12 x 30mm

4шт.

8

84323949

MANIFOLD VALVE

1шт.

9

382181

BOLT,Hex, M12 x 1.75 x 190mm, Cl 8.8

2шт.

10

83911570

HEX SOCKET PLUG,9/16"-18

1шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

5шт.

12

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1/4" ORFS - ORB 1/4"

3шт.

13

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

14

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

5/8" ORFS - ORB 3/4"

1шт.

15

163410

PLUG,1-1/16" - 12 ORB

1шт.

16

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1.0mm ORFS - ORB 1.0mm

2шт.

17

47512010

FITTING

HYD, STR -240 ORFS x 1-7/8" - 12 ORB

1шт.

18

201-148

ELBOW UNION

1.5mm ORFS - ORB 1.5mm

1шт.

19

87403648

PRESSURE SWITCH

Normally Closed

1шт.

20

87368476

PRESSURE SWITCH

Normally Open

1шт.

21

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1шт.

22

84191685

ELBOW UNION,2" - 12 ORFS x 2" - 12

ORFS 90° SWVL 38mm or 1-1/2"

1шт.

23

87493308

HYD CONNECTOR,1-11/16-12 ORFS x M30 x 1-1/4 ORB

Elbow, 90° ADJ 1.25mm ORFS - ORB 1.25mm

2шт.

24

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

2шт.

25

47512066

FITTING

Tee, Swivel BR ORFS - ORB - ORFS 38mm

1шт.

26

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

1шт.

27

84345472

BRAKE VALVE

Solenoid

1шт.
