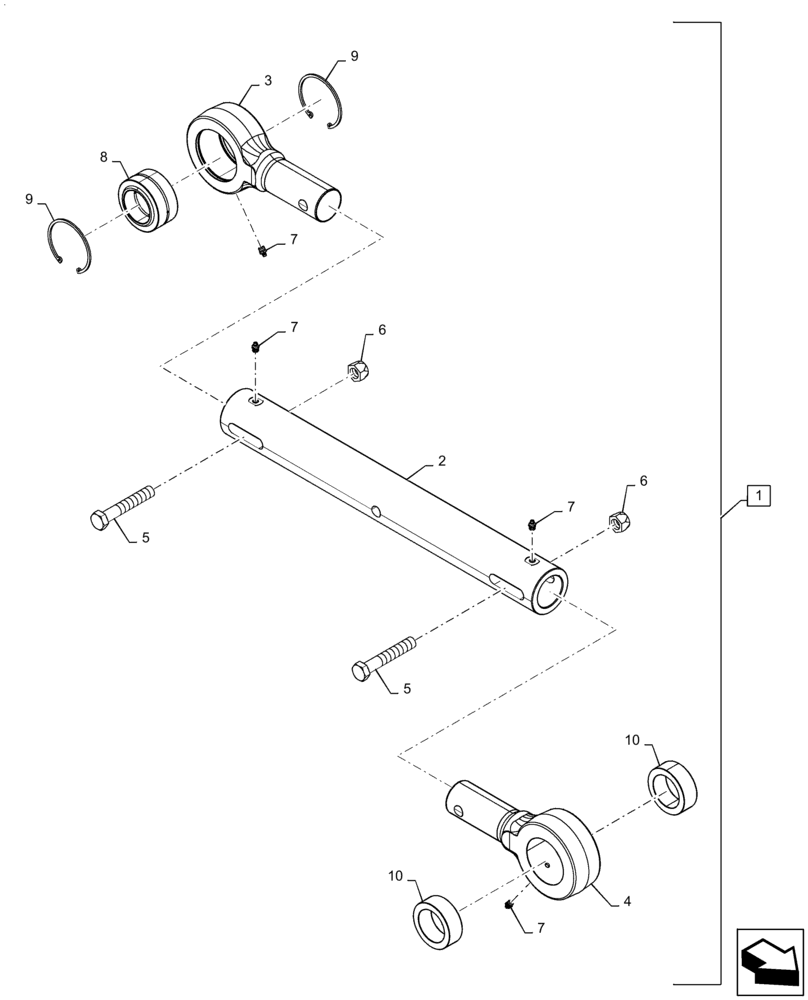

Запчасти Case 2050M XLT (35.766.AM [03]) - TIE-ROD ASSY, PUSH BEAM (35) - HYDRAULIC SYSTEMS

1

84547997

TIE-ROD

Push Beam, Incl 2 -10

1шт.

2

NSS

NOT SOLD SEPARAT

Tie-Rod Tube, Incl W/ Ref 1

1шт.

3

NSS

NOT SOLD SEPARAT

Tie-Rod End, Spherical, Incl W/ Ref 1

1шт.

4

NSS

NOT SOLD SEPARAT

Tie-Rod End, Straight, Incl W/ Ref 1

1шт.

5

86511674

BOLT,Hex, M20 x 120mm, Cl 10.9

2шт.

6

86536985

NUT,M20 x 2.5, Cl 10

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

8

84547992

BUSHING

100mm OD

1шт.

9

370026

SNAP RING,M100 x 3mm Thk, Internal

2шт.

10

84547993

BUSHING

90mm OD

2шт.
