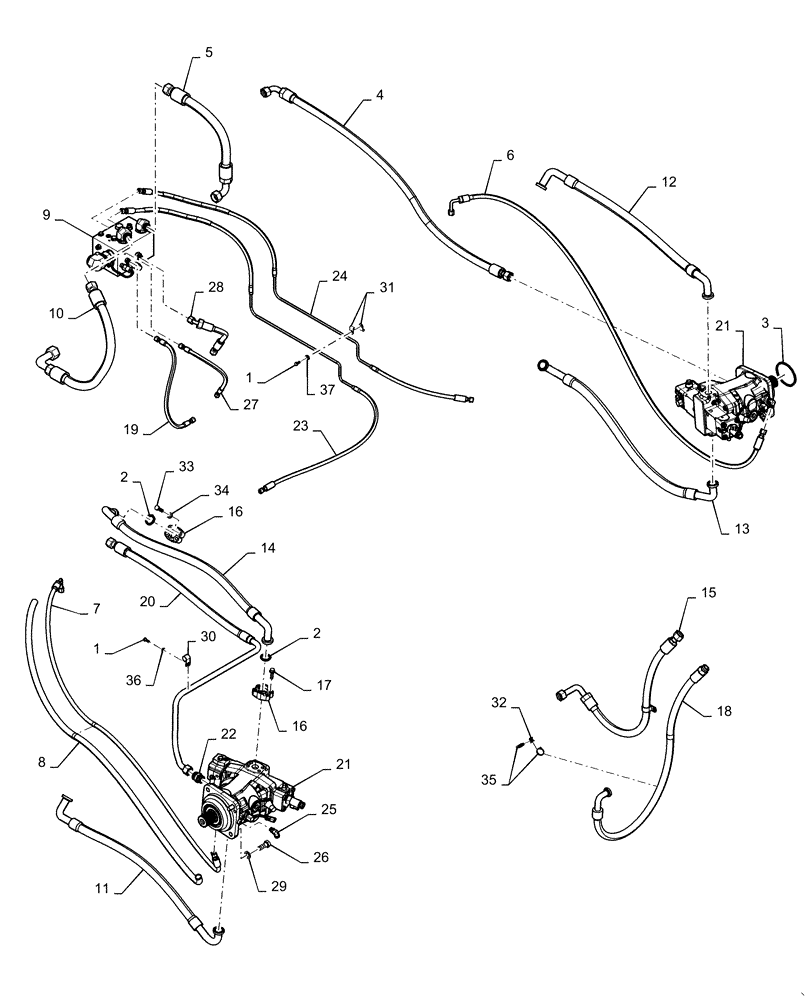

Запчасти Case 2050M XLT (29.218.AO[02]) - HYDROSTATIC TRANSMISSION (29) - HYDROSTATIC DRIVE

1

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

2

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

8шт.

3

14468381

O-RING

2шт.

4

47371609

HYDRAULIC HOSE,25.4mm ID x 1620mm L, SAE 100R1

Motor to Manifold

1шт.

5

47371614

HYDRAULIC HOSE,31.75mm ID x 775mm L, SAE 100R1

Pump to Manifold T1 - T2

1шт.

6

47371742

HYDRAULIC HOSE,12.7mm ID x 2410mm L, SAE 100R16

Flushing RH

1шт.

7

47371816

HYDRAULIC HOSE,12.7mm ID x 2115mm L, SAE 100R16

Flushing LH

1шт.

8

47373827

TUBE

Hose 25 x 2310

2шт.

9

84323949

MANIFOLD VALVE

1шт.

10

47482051

HOSE,31.75mm ID x 985mm L, SAE 100R1

Pump to Manifold T2 - TP2

1шт.

11

47488340

HOSE,31.75mm ID x 1140.6mm L, SAE 100R15

Pump to Motor Front Left

1шт.

12

47488341

HOSE,31.75mm ID x 1145mm L, SAE 100R15

Pump to Motor Right Rear

1шт.

13

47488342

HOSE,31.75mm ID x 1185mm L, SAE 100R15

Pump to Motor Rear Left

1шт.

14

47488343

HOSE,31.75mm ID x 1205mm L, SAE 100R15

Pump to Motor Front Right

1шт.

15

47494394

HOSE,25.4mm ID x 1065mm L, SAE 100R16

Filter to FE

1шт.

16

47514132

FLANGE

16шт.

17

47522099

BOLT

16шт.

18

47597639

HOSE

FE to Filter

1шт.

19

47616747

HOSE

Pump to PS to Manifold Y1

1шт.

20

47616817

TUBE

Moter to Manifold

1шт.

21

84318437

HYDROSTATIC MOTOR,280CC

2шт.

21

84318437R

REMAN-HYDROSTAT MOTO

2050M LT, 2050M WT/LGP, 2050M XLT, All CRAWLER DOZER TIER 4A (12/13-)

2шт.

21

84318437C

CORE-HYDROSTAT MOTOR

Return Number

2шт.

22

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

23

47648398

TUBE

LH Brake

1шт.

24

47648405

TUBE

RH Brake

1шт.

25

87016877

ELBOW,90 Degree, 13/16"-16 x 9/16"-18, Adj, ORFS

2шт.

26

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

8шт.

27

84359028

HYDRAULIC HOSE,15.88mm ID x 426mm L, SAE 100R16

Pump to Manifold PS - Y2

1шт.

28

84359028

HYDRAULIC HOSE,15.88mm ID x 426mm L, SAE 100R16

Pump to Manifold G tp P

1шт.

29

86642462

LOCK WASHER,M20

O-Ring

8шт.

30

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

31

86639003

CLAMP,9.5mm, Coat, 11.9mm Bolt Hole, P Type

4шт.

32

86982400

SPACER

2шт.

33

87015765

BOLT,Hex, M14 x 45mm, Cl 10.9, Full Thd

16шт.

34

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

16шт.

35

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

36

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

37

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.
