Запчасти Case 2050M XLT (10.400.BF [01]) - COOLER ASSY., FRAME (10) - ENGINE

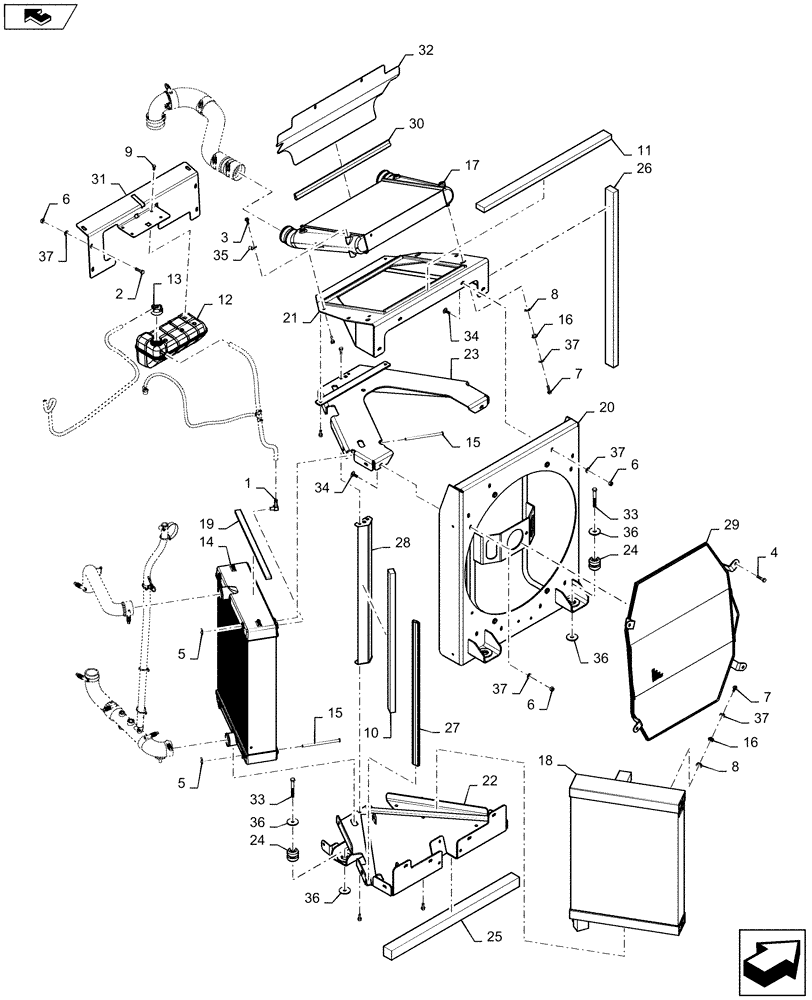

Схема запчастей Case 2050M XLT - (10.400.BF [01]) - COOLER ASSY., FRAME (10) - ENGINE
6
30
37
32
25
3
6
15
24
36
15
29
24
20
2
5
37
8
7
27
33
19
16
12
6
13
23
10
31
36
home
37
36
22
4
11
9
37
34
7
37
21
17
14
5
1
28
18
34
8
33
26
16
35
36

Артикул

Название

Примечание

Количество

1

217-86

PLUG,Hex Hd, 1/4"-18, Brass

1шт.

2

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

4

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

5

87700737

CLIP

Pin

4шт.

6

8475948

NUT,M10 x 1.5, Cl 8

14шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

8

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

4шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

10

47426880

SEAL

Foam

2шт.

11

47557339

SEAL

Foam

1шт.

12

82019588

RESERVOIR

1шт.

13

82022744

CAP,Female, Vented, Non-Locking

1шт.

14

84262310

RADIATOR

5 Row

1шт.

15

84269372

PIN,9.65mm OD x 177.75mm L

4шт.

16

84316339

HUB,10mm ID x 23mm OD x 10.8mm L

Collar Sliding

4шт.

17

84376173

AFTERCOOLER

1шт.

18

84376175

COOLER ASSY.

Oil

1шт.

19

84382952

SEALING STRIP,25mm W x 540mm L x 12mm Thk

Foam

1шт.

20

84540627

SHROUD

Fan

1шт.

21

84540635

FRAME

CAC Mount

1шт.

22

47376041

FRAME

Lower

1шт.

23

84540646

FRAME

Upper

1шт.

24

84540649

ISOLATOR,50mm OD x 50mm L

Vibration

4шт.

25

84540655

SEALING STRIP,815mm L

Foam

1шт.

26

84540656

SEALING STRIP,50.8mm W x 970mm L x 50.8mm Thk

Foam

2шт.

27

84540657

RUBBER WEATHERSTRIP,17mm W x 790mm L x 35mm H

Bulb

2шт.

28

84542663

SUPPORT

Rear

1шт.

29

84544062

GUARD

Fan

1шт.

30

84557202

RUBBER WEATHERSTRIP,28mm W x 600mm L x 15mm H

Bulb

1шт.

31

84569672

BAFFLE

Upper

1шт.

32

84569682

BAFFLE

Lower

1шт.

33

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

4шт.

34

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

10шт.

35

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

36

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

0.521 x 2 x 0.16 HTS ZND

8шт.

37

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

18шт.

Выбрано товаров: 37
