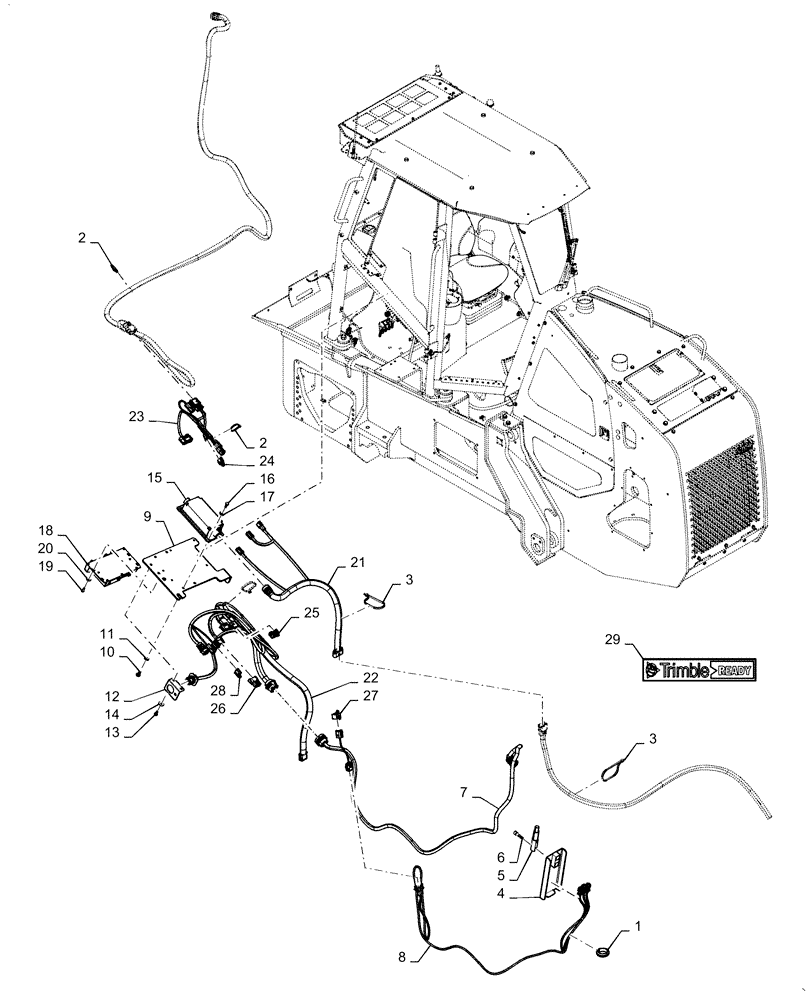

Запчасти Case 2050M XLT (55.680.AA[01]) - BLADE GUIDE, TRIMBLE READY (55) - ELECTRICAL SYSTEMS

1

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

Oil Cooler

2шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

Nylon

5шт.

3

L18331

CABLE TIE,375.9mm L, Nylon

15шт.

4

47411783

BRACKET

Trimble DZ Display Plate

1шт.

5

47466111

POST

Trimble Display

1шт.

6

86512139

HEX SOC SCREW,M10 x 40mm, Cl 12.9

2шт.

7

47411794

WIRE HARNESS

Trimble DZ Display

1шт.

8

47466112

WIRE HARNESS

Trimble Light Bars

1шт.

9

47411785

BRACKET

Trimble DZ Controller

1шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

11

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

12

47467619

BRACKET

Trimble Diagnostic Conn.

1шт.

13

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

2шт.

14

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

2шт.

15

47467614

CONTROLLER

Trimble Power

1шт.

16

87646159

BOLT,Hex, M8 x 20mm, Cl 8.8

4шт.

17

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

18

47467615

CONTROLLER

Trimble Connected Site

1шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

47365599

WIRE HARNESS

Trimble DZ Interface

1шт.

22

47411786

WIRE HARNESS

Trimble DZ Main

1шт.

23

47467616

WIRE HARNESS

Trimble SNM940

1шт.

24

84391165

HOUSING,Male, 3 Pins

Connector Wire DT Series 3 Way

1шт.

25

84391169

CAP,Male, 2 Pins

Connector Wire DT Male

1шт.

26

47410329

DUST CAP

12W DTM Series Recess Housing

1шт.

27

84391168

CAP

DT Series 8 Way

1шт.

28

84391166

WIRE CONNECTOR,Male, 4 Pins

Connector Wire DT Series 4 Way

1шт.

29

47560212

DECAL

Trimble Ready

3шт.
