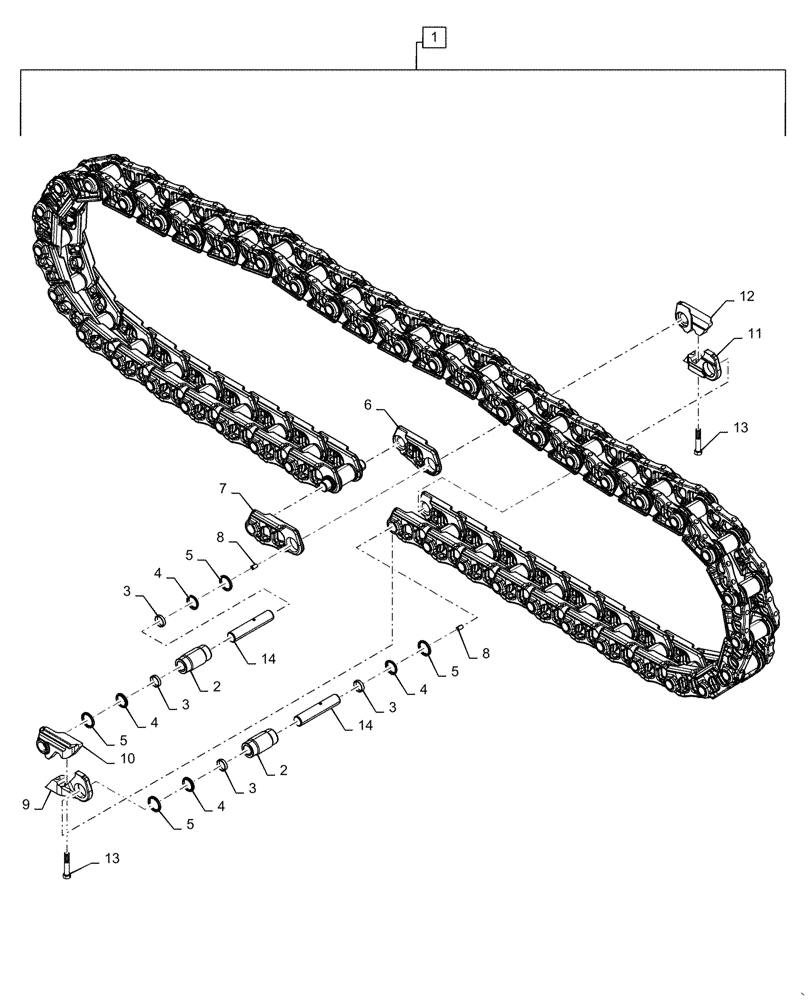

Запчасти Case 2050M XLT (48.100.AD[13]) - TRACK CHAIN 45 LINK CLT (48) - TRACKS & TRACK SUSPENSION

1

84314580

CHAIN (CE),8923.2mm L

45 Link, Standard, CLT

1шт.

2

84314568

BUSHING,44.85mm ID x 72.7mm OD x 146.95mm L

Track Chain Standard, CLT

45шт.

3

84314571

RING,45mm ID x 50mm OD x 10mm L

Thrust

90шт.

4

84359830

SEAL,51mm ID x 63mm OD x 9mm L

Track Link

90шт.

5

84359832

SEAL,60mm ID x 67mm OD x 10mm L

Rubber

90шт.

6

84314577

TRACK LINK

Left Hand

44шт.

7

84314573

TRACK LINK

Right Hand

44шт.

8

87582718

PLUG

Oil

45шт.

9

84377122

TRACK LINK

Master, Right Hand Split Bushing End

1шт.

10

84377130

TRACK LINK

Master, Right Hand Split Pin End

1шт.

11

84314574

TRACK LINK

Master, Left Hand Split Bushing End

1шт.

12

84314575

TRACK LINK

Master, Left Hand Split Pin End

1шт.

13

84377489

BOLT

Master Link, Shoe Mounting

4шт.

14

84314570

PIN,44.49mm OD x 230mm L

Track Link

45шт.
