(48.100.AD[09]) - TRACK ASSY, 45 LINK CLT 24" CLOSED

Запчасти Case 2050M XLT (48.100.AD[09]) - TRACK ASSY, 45 LINK CLT 24" CLOSED (48) - TRACKS & TRACK SUSPENSION

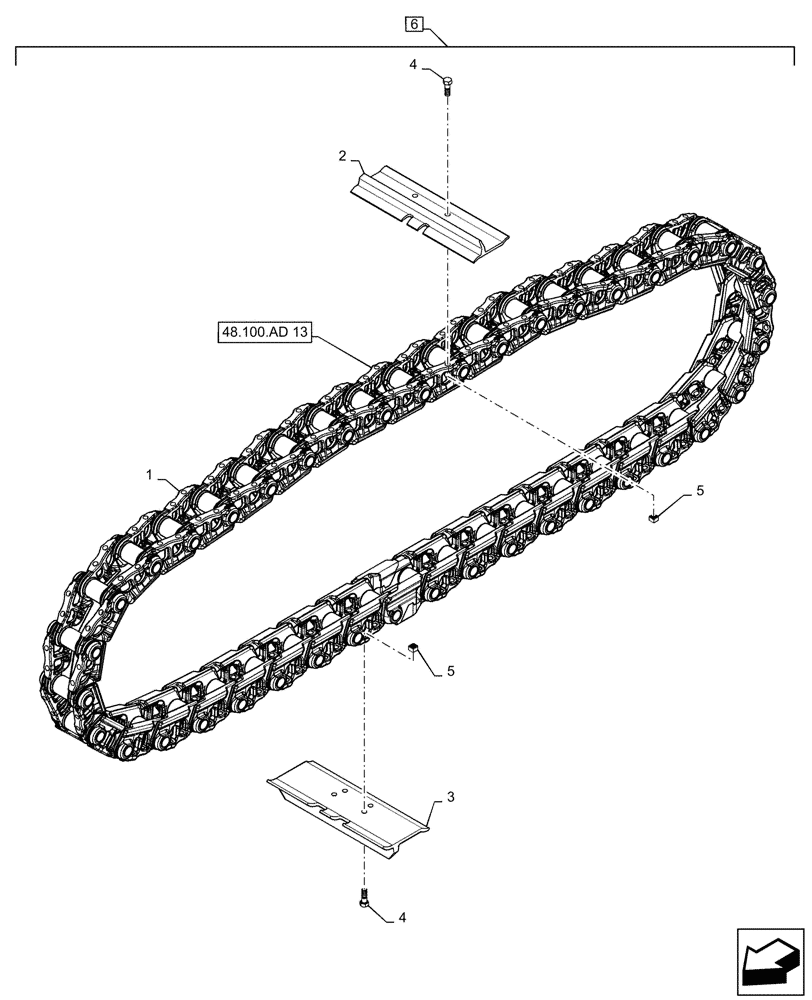

Схема запчастей Case 2050M XLT - (48.100.AD[09]) - TRACK ASSY, 45 LINK CLT 24" CLOSED (48) - TRACKS & TRACK SUSPENSION
48.100.ad 13
3
2
4
4
5
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84314580

CHAIN (CE),8923.2mm L

CLT, 45 Link

1шт.

2

84318987

TRACK SHOE,609.6mm W

24", Closed

44шт.

3

84318987

TRACK SHOE,609.6mm W

Master Link Shoe, 24" Closed

1шт.

4

84360268

BOLT

176шт.

5

87582723

SQUARE NUT

176шт.

6

84370985

TRACK ASSY

CLT, Incl 1 - 5

1шт.
