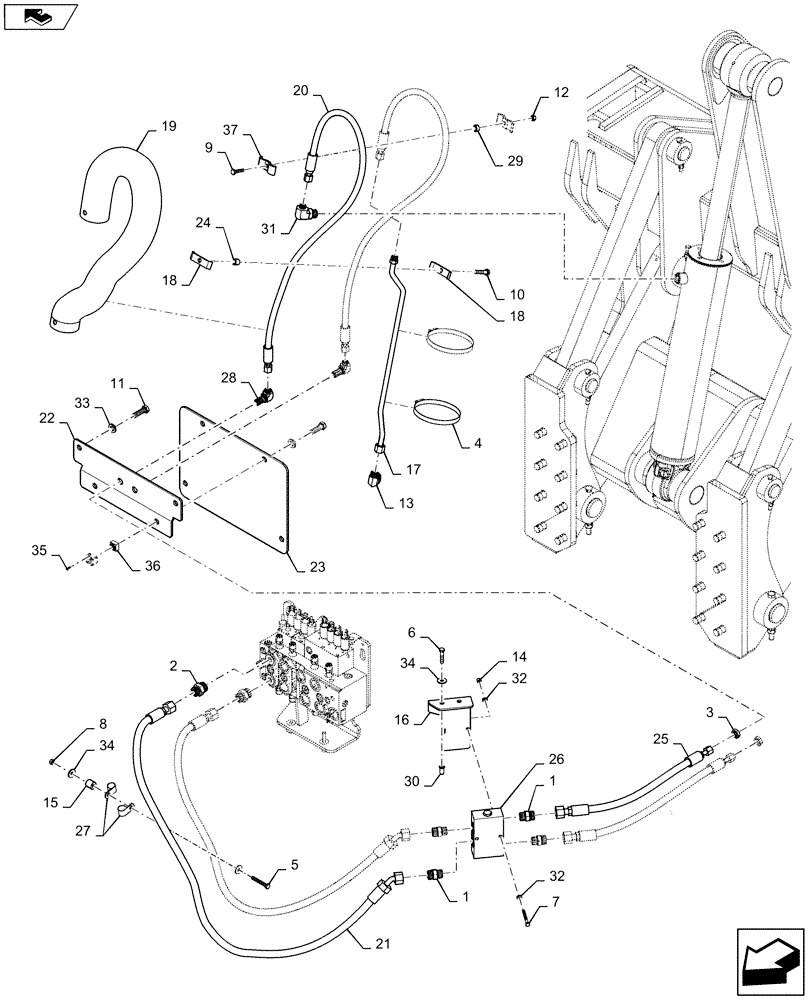

Запчасти Case 2050M WT/LGP (35.742.AA[01]) - HYDRAULIC SYSTEM, RIPPER (35) - HYDRAULIC SYSTEMS

1

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

2

201-113

HYD CONNECTOR,13/16" - 16 Male ORFS x 1-5/16" - 12 Male ORB

2шт.

3

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

4

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

2шт.

5

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

6

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

7

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

10

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

11

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

12

8475948

NUT,M10 x 1.5, Cl 8

1шт.

13

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

1шт.

14

16104121

NUT,M8 x 1.25, Cl 10

2шт.

15

47377940

SPACER,11mm ID x 25.4mm OD x 25.4mm L

1шт.

16

47552011

BRACKET

Check Valve

1шт.

17

47516491

TUBE

Rip Cylinder Tube End

1шт.

18

47517705

CLAMP

2шт.

19

47518240

PROTECTIVE SLEEVE

1шт.

20

47519074

HOSE,12.7mm ID x 1597mm L, SAE 100R16

Ripper Rod End

2шт.

21

47550267

HOSE

Ripper A Port

2шт.

22

84402706

PLATE

Ripper Bulkhead

1шт.

23

84402707

PLATE

Center Box

1шт.

24

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

1шт.

25

47550890

HOSE,15.88mm ID x 710mm L, SAE 100R16

Ripper

2шт.

26

47552155

CHECK VALVE

1шт.

27

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

28

86639079

ELBOW,90 Degree, 13/16"-16, ORFS, Blkhd

2шт.

29

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

1шт.

30

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

31

87591918

90 ELBOW

1шт.

32

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

33

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

6шт.

34

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

35

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

36

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

2шт.

37

434130A1

HOSE CLAMP

2шт.
