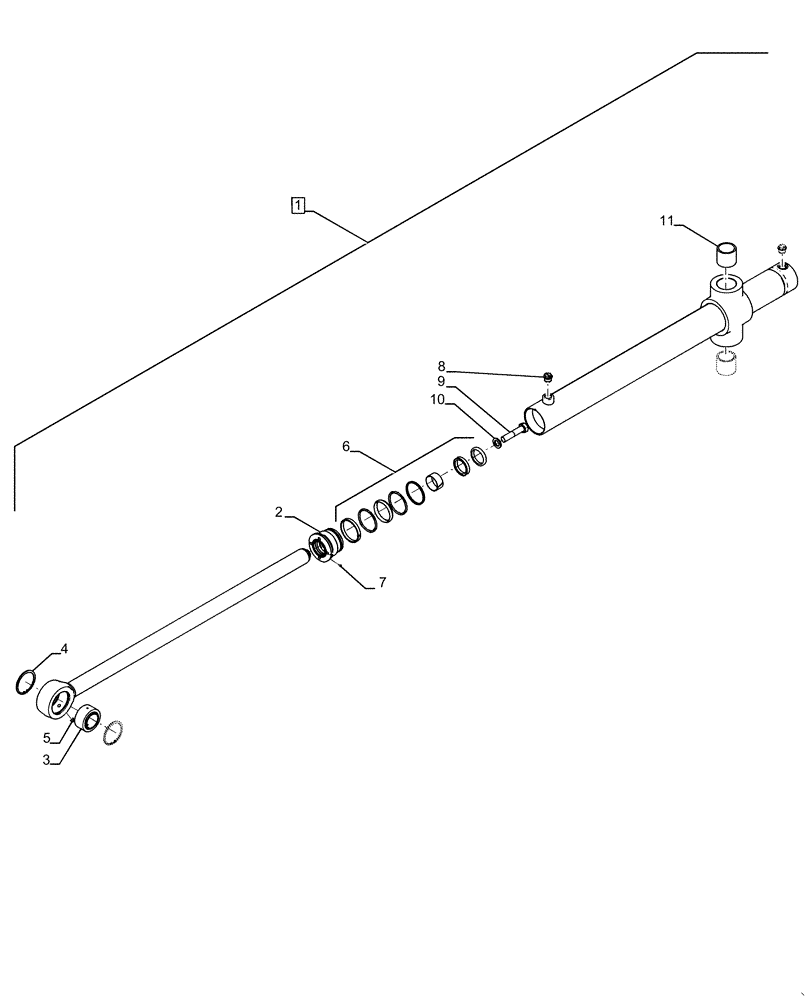

Запчасти Case 2050M WT/LGP (35.741.AA[03]) - LIFT CYLINDER 82.6 X 50.5MM (35) - HYDRAULIC SYSTEMS

1

47469508

LIFT CYLINDER

82.6 x Incl 2 - 11

1шт.

1

47469508R

REMAN-HYD CYLINDER

1шт.

1

47469508C

CORE-HYD CYLINDER

Return Number

1шт.

2

84335383

GLAND

1шт.

3

D23601

HOUSING

1шт.

4

100-21315

SNAP RING,3.156", Int, #315

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

84479822

SEAL KIT

Seals

1шт.

7

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

8

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

9

47368448

BOLT

1шт.

10

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

11

84386929

BUSHING

2шт.
