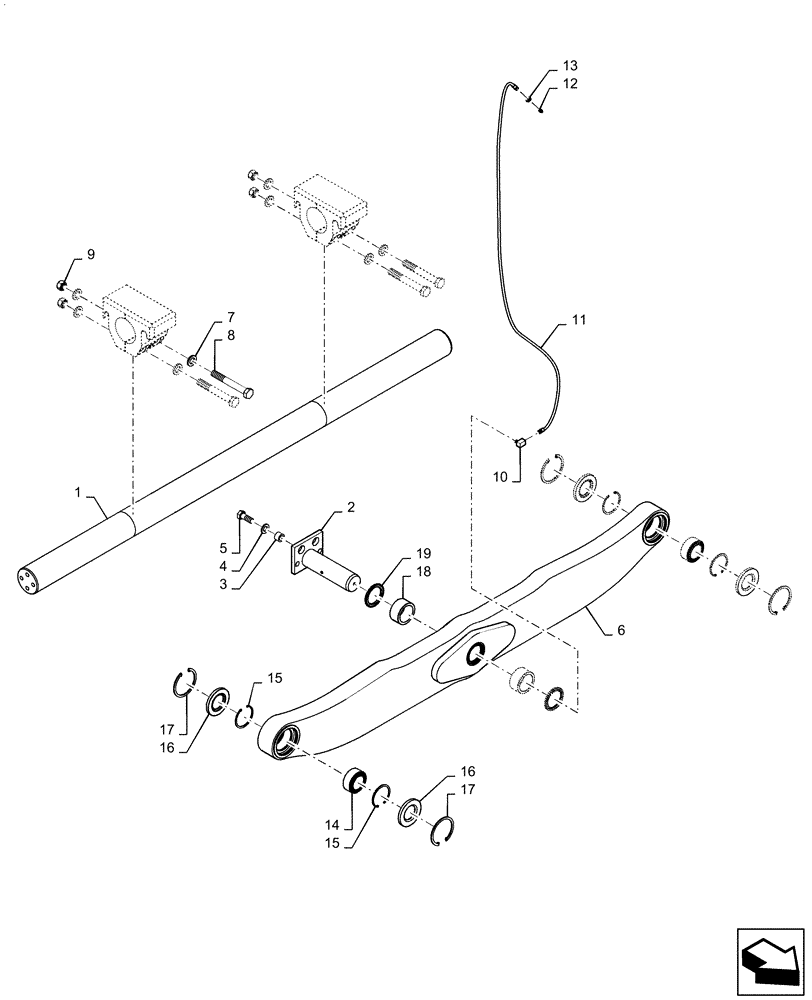

Запчасти Case 2050M WT/LGP (25.400.AR[02]) - SUSPENSION, WIDE BSN: NFDC20089 (25) - FRONT AXLE SYSTEM

1

84555890

SHAFT

Pivot

1шт.

2

84301353

SPECIAL PIN

Center

1шт.

3

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

5

87563127

BOLT,Hex, M20 x 50mm, Cl 10.9

M20 x 50mm

2шт.

6

47523570

BEAM

Equalizer LGP

1шт.

7

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.

8

47567994

BOLT,Hex, M24 x 180mm, Cl 10.9

M24 x 180mm

4шт.

9

829-1424

NUT,M24, Cl 10

4шт.

10

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

11

84588575

HOSE ASSY.,4mm ID x 1430mm L, SAE 100R7

Grease

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

76085536

NUT,1/8-27 NPSM

1/8 - 27

1шт.

14

87381270

SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W

2шт.

15

11062476

SNAP RING,M90, Int

4шт.

16

84340877

OIL SEAL

Equalizer

4шт.

17

11075676

SNAP RING,M115, Int

4шт.

18

47411768

BUSHING,70.22mm ID x 90mm OD x 44.5mm L

Center Pin EQ Beam

2шт.

19

47462151

SEAL

2шт.
