Запчасти Case 2050M WT/LGP (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

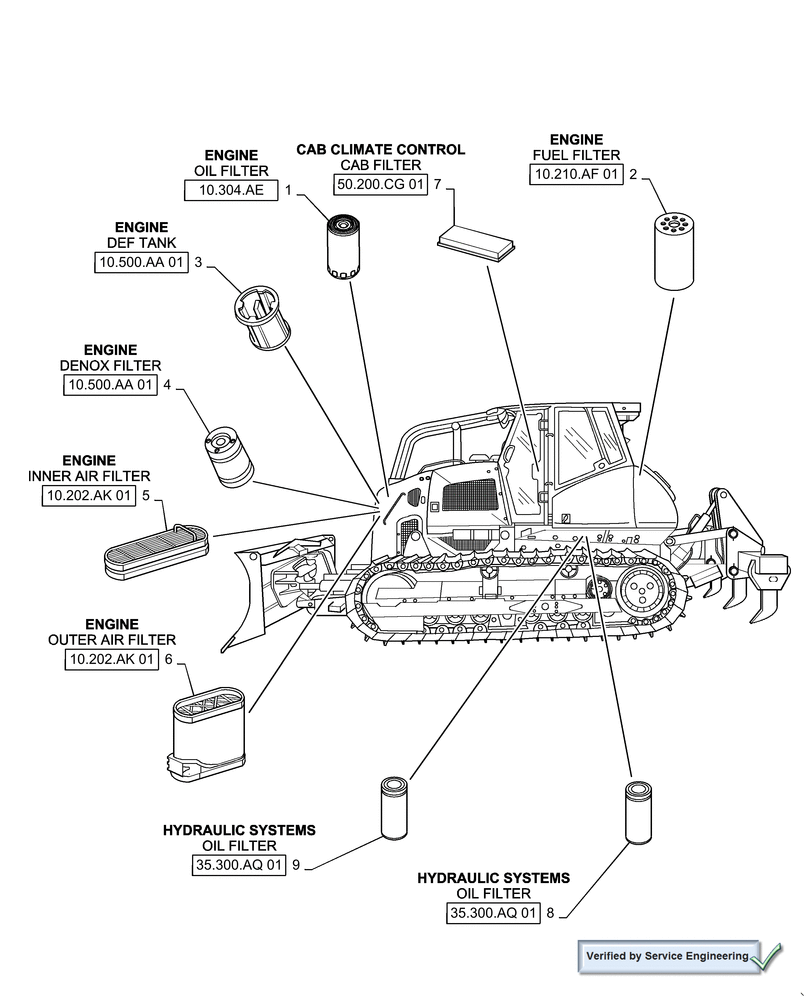

Схема запчастей Case 2050M WT/LGP - (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE
6
7
2
8
35.300.aq 01
10.210.af 01
10.500.aa 01
3
35.300.aq 01
9
10.500.aa 01
10.202.ak 01
50.200.cg 01
5
10.304.ae
4
10.202.ak 01
1

Артикул

Название

Примечание

Количество

1

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

Spin-On

1шт.

2

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Water Seperator

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Engine, Water Seperator

1шт.

3

84153651

FILTER SCREEN

Tank Filter

1шт.

4

84254852

FILTER

Denox

1шт.

5

87720899

ELEMENT

Inner, Serial Range: -NFDC20131

1шт.

5

47850030

AIR FILTER

Inner , Start Serial: NFDC20132

1шт.

6

47850029

AIR FILTER

Outer , Start Serial: NFDC20132

1шт.

6

84392297

ELEMENT

Outer, Serial Range: -NFDC20131

1шт.

7

87691825

CAB FILTER

Fresh Air

1шт.

8

84196445

HYDRAULIC OIL FILTER

Spin-On

1шт.

9

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

Charge

1шт.

Выбрано товаров: 12
