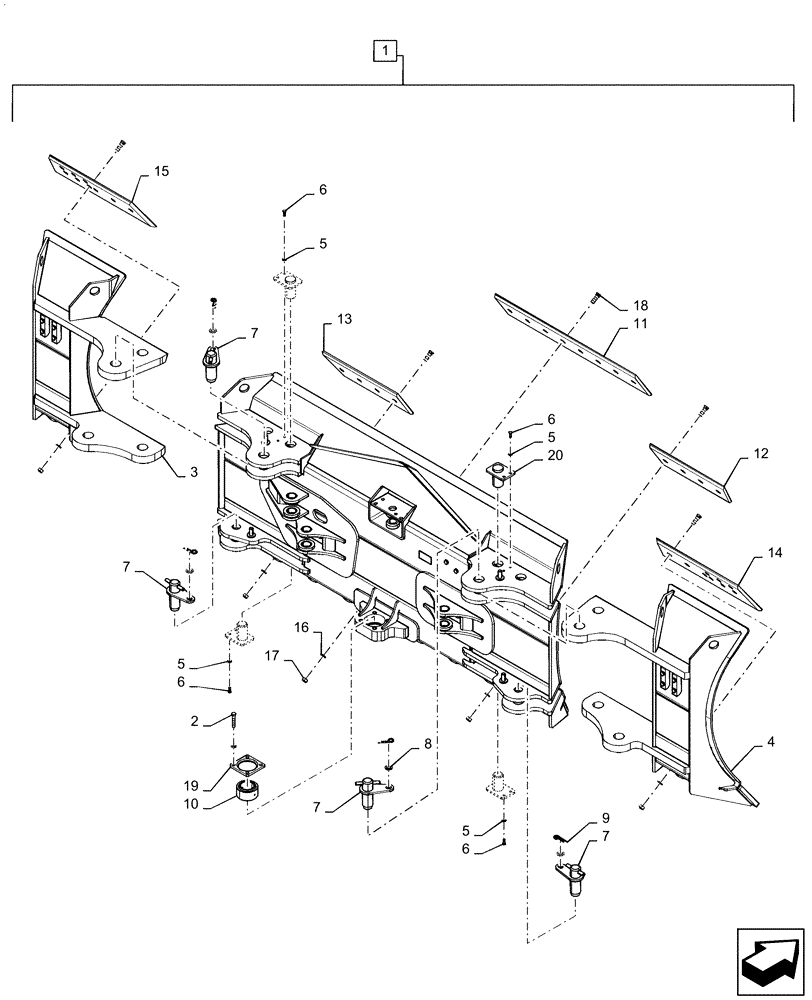

Запчасти Case 2050M WT/LGP (86.110.AD[07]) - DOZER BLADE FOLDABLE LGP (86) - DOZER

1

47732772

DOZER BLADE

Folding, Incl 2 - 20

1шт.

2

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

3

NSS

NOT SOLD SEPARAT

Blade End, LH Incl in Ref. 1

1шт.

4

NSS

NOT SOLD SEPARAT

Blade End, RH Incl in Ref. 1

1шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

7

47401539

PIN

Locking, Assy

4шт.

8

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

9

87613336

HAIR PIN COTTER,23mm x 97mm L

4шт.

10

87314613

BUSHING

3.250 Inch ID

1шт.

11

84339204

CUTTING EDGE,1212mm L x 254mm W x 19mm Thk

Center

1шт.

12

47504385

CUTTING EDGE

Inner RH

1шт.

13

47504384

CUTTING EDGE

Inner LH

1шт.

14

47406505

CUTTING EDGE,850mm L x 254mm W x 20mm Thk

Outer RH

1шт.

15

47406508

CUTTING EDGE,850mm L x 254mm W x 20mm Thk

Outer LH

1шт.

16

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

Cutting Edge Mounting

34шт.

17

12164321

NUT,M20 x 1.5, Cl 10

Cutting Edge Mounting

34шт.

18

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

Cutting Edge Mounting

34шт.

19

84545666

CAP

Lower Trunnion Mounting

1шт.

20

47503630

PIN

Plate, Pivot

4шт.
