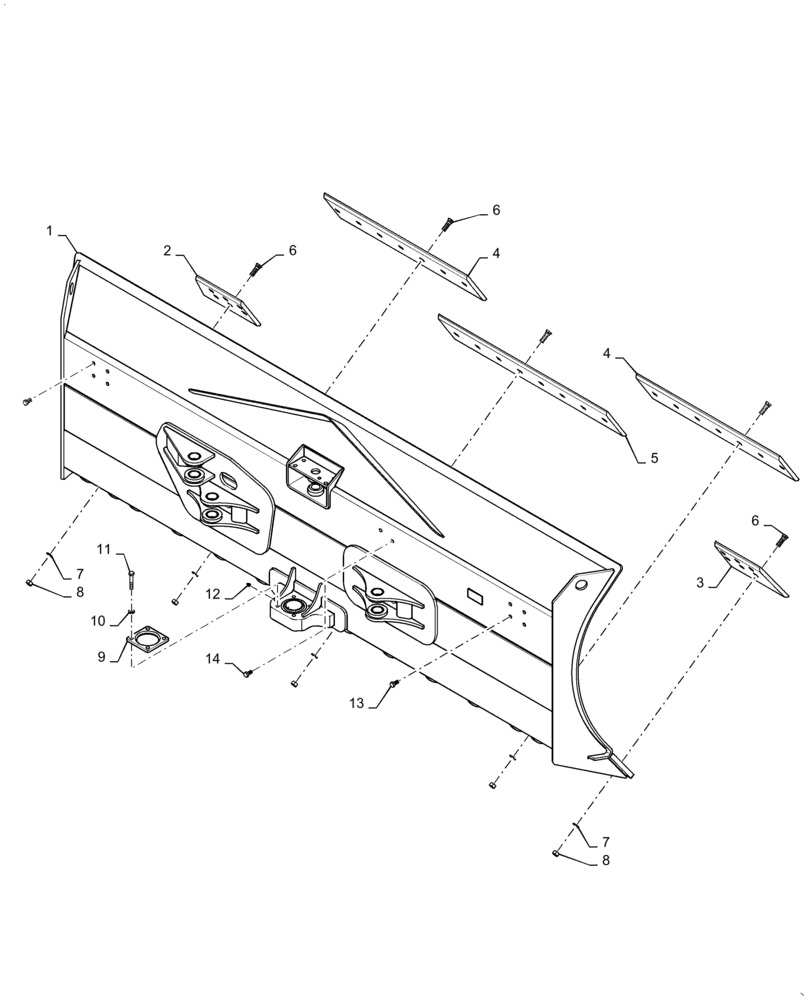

Запчасти Case 2050M WT/LGP (86.110.AD[04]) - BLADE PAT (LGP) (86) - DOZER

1

47767815

DOZER BLADE,4000mm W x 1369mm H

LGP, Incl 2 -15

1шт.

2

47632751

BIT

Left Hand

1шт.

3

47632752

BIT

Right Hand

1шт.

4

84338696

CUTTING EDGE

Outer

2шт.

5

84339204

CUTTING EDGE,1212mm L x 254mm W x 19mm Thk

Center

1шт.

6

8282270

PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9

32шт.

7

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

32шт.

8

86015195

NUT,M20 x 1.5, Cl 10

32шт.

9

84545666

CAP

Lower Trunnion Mounting

1шт.

10

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

4шт.

11

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

15

87314613

BUSHING

Lower Trunion

1шт.
