(48.100.AD[02]) - TRACK ASSY, 45 LINK CLT 30" CLOSED

Запчасти Case 2050M WT/LGP (48.100.AD[02]) - TRACK ASSY, 45 LINK CLT 30" CLOSED (48) - TRACKS & TRACK SUSPENSION

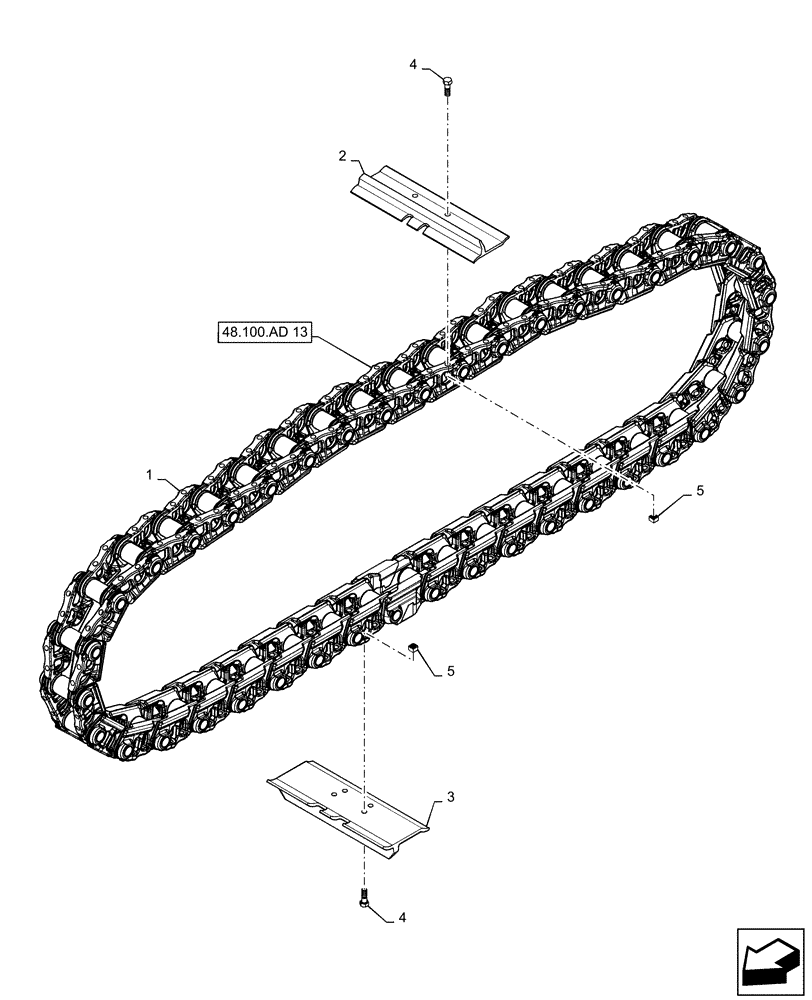

Схема запчастей Case 2050M WT/LGP - (48.100.AD[02]) - TRACK ASSY, 45 LINK CLT 30" CLOSED (48) - TRACKS & TRACK SUSPENSION
4
5
2
48.100.ad 13
5
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84314580

CHAIN (CE),8923.2mm L

1шт.

2

84362132

TRACK SHOE,762mm W

44шт.

3

84377943

TRACK SHOE,762mm W

1шт.

4

84360268

BOLT

176шт.

5

87582723

SQUARE NUT

176шт.

Выбрано товаров: 5
