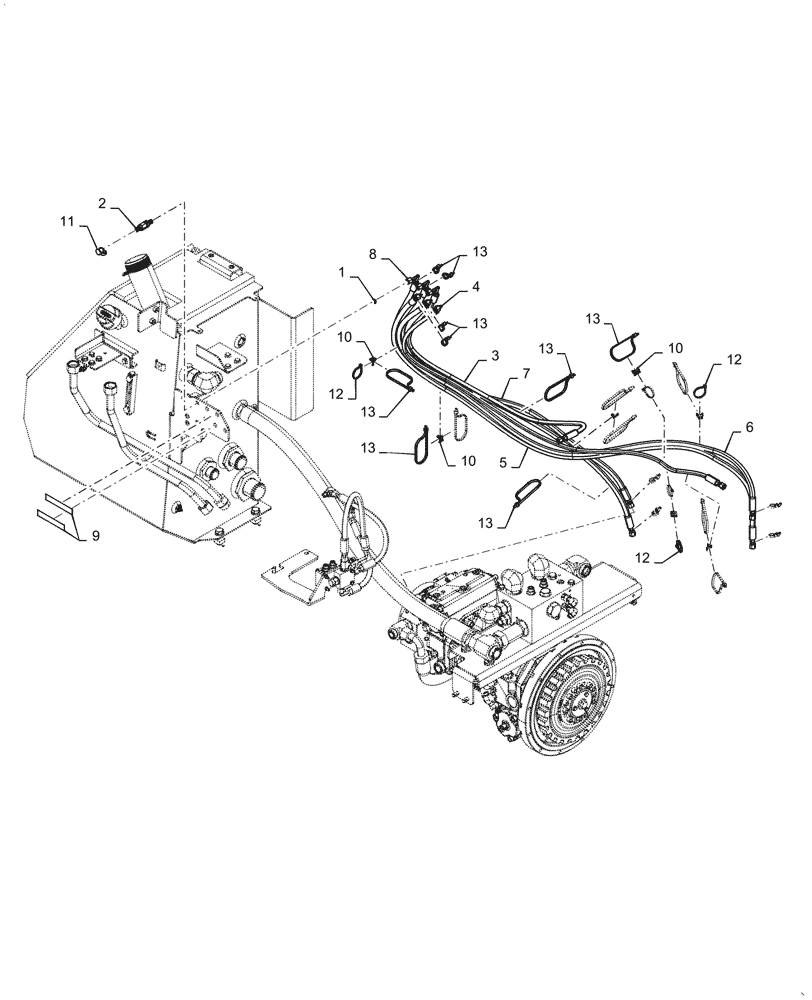

Запчасти Case 2050M LT PAT (35.525.020) - HYDRAULIC HOSE, DIAGNOSTIC COUPLERS (35) - HYDRAULIC SYSTEMS

1

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

12шт.

2

47376296

NIPPLE

Diagnostic Bulkhead

9шт.

3

47548478

HOSE,6.35mm ID x 1374mm L, SAE 100R16

Diagnostic, Equipment

6шт.

4

47548864

HOSE,6.35mm ID x 1672mm L, SAE 100R17

Charge Pressure

1шт.

5

47635684

HOSE

Left Forward

1шт.

6

47635797

HOSE

Left Reverse

1шт.

7

47635802

HOSE

Right Reverse

1шт.

8

47635810

HOSE

Right Forward

1шт.

9

84124148

DECAL

Diagnostic Port

1шт.

10

86982400

SPACER

Hose, Tie-Down

6шт.

11

H434163

DUST CAP

Diagnostic Hose

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

13

L18331

CABLE TIE,375.9mm L, Nylon

11шт.
