Запчасти Case 2050M LT PAT (10.414.020) - FAN (10) - ENGINE

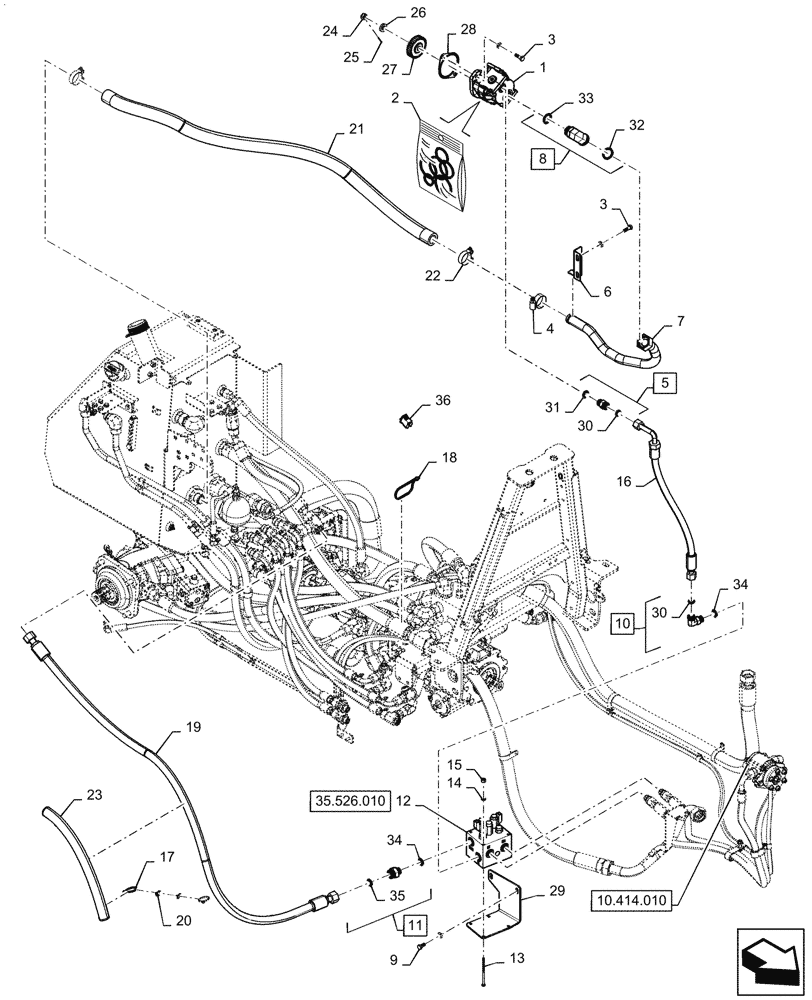

Схема запчастей Case 2050M LT PAT - (10.414.020) - FAN (10) - ENGINE
35.526.010
1
2
34
29
12
4
22
9
17
21
16
31
33
19
11
32
10
36
6
7
15
3
26
24
23
20
34
30
30
27
35
14
3
8
28
18
25
13
5
10.414.010

Артикул

Название

Примечание

Количество

1

84398131

HYDRAULIC PUMP,33 CC

1шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

Pump Service

6шт.

3

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

4

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

5

47743826

HYD CONNECTOR

Incl 30, 31

1шт.

6

47432129

PLATE

1шт.

7

47432556

TUBE

1шт.

8

84256799

90 ELBOW

Incl 32, 33

1шт.

9

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

10

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 30, 34

1шт.

11

86639051

HYD CONNECTOR,1-7/16" - 12 ORFS x M27 x 2 ORB

Incl 34, 35

1шт.

12

8500565

HYDRAULIC VALVE

Fan Control

1шт.

13

300807

BOLT,Hex, M8 x 140, 8.8

4шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

15

412250

NUT,M8 x 1.25, Cl 8

4шт.

16

47408419

HYDRAULIC HOSE,19.05mm ID x 700mm L, SAE 100R16

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

18

L18331

CABLE TIE,375.9mm L, Nylon

1шт.

19

47372426

HYDRAULIC HOSE,25.4mm ID x 2180mm L, SAE 100R16

1шт.

20

86982400

SPACER

4шт.

21

47436913

HOSE,38.1mm ID x 1693mm L, SAE 100R4

1шт.

22

84180945

COLLAR CLAMP,1.87" - 2.18"

2шт.

23

47648502

TUBE

1шт.

24

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

25

733-3232

COTTER PIN,M3.2 x 32

1шт.

26

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

1шт.

27

87389871

GEAR

1шт.

28

A77441

GASKET

1шт.

29

47538586

MOUNT

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

33

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

34

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

35

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

36

84375593

SWITCH

Fan Reverse, Rocker

1шт.

Выбрано товаров: 36
