Запчасти Case 2050M LT PAT (10.210.010) - FUEL LINE & INLINE FILTER, NA, ENGINE (10) - ENGINE

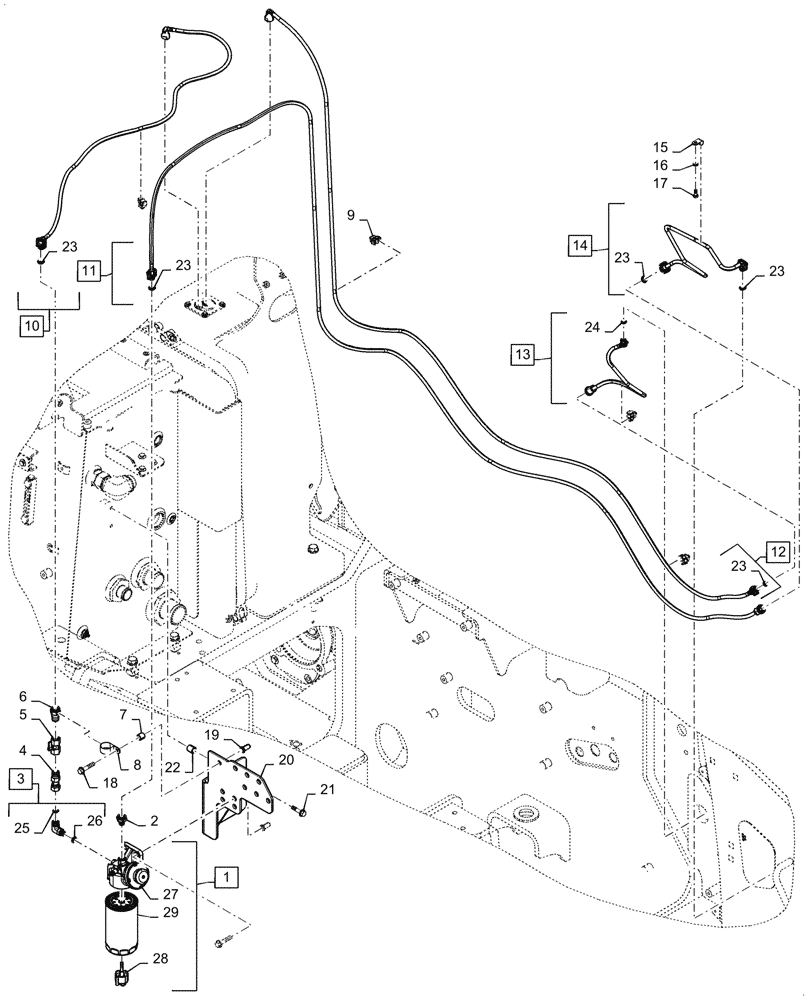

Схема запчастей Case 2050M LT PAT - (10.210.010) - FUEL LINE & INLINE FILTER, NA, ENGINE (10) - ENGINE
29
2
23
23
4
15
16
21
23
20
18
7
5
6
1
26
11
17
23
28
8
12
10
24
13
27
23
25
9
3
14
22
19

Артикул

Название

Примечание

Количество

1

84348875

FILTER ASSY

Incl 27 - 29

1шт.

2

47728714

ADAPTER

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

Incl 25, 26

1шт.

4

84520680

HYD CONNECTOR

1шт.

5

86984713

SHUT-OFF VALVE

1шт.

6

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

7

363082R1

SPACER,3/8" Pipe x .656"

1шт.

8

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

84298475

HOSE CLAMP

11шт.

10

47415599

FUEL TUBE,8.75mm ID x 10mm OD x 1275mm L

Incl 23

1шт.

11

47415597

FUEL TUBE,8.75mm ID x 10mm OD x 3840mm L

Incl 23

1шт.

12

47360121

FUEL TUBE,8.75mm ID x 10mm OD x 3120mm L

Incl 23

1шт.

13

84590423

FUEL TUBE,8.75mm ID x 10mm OD x 403mm L

Incl 24

1шт.

14

47893827

FUEL TUBE,8.75mm ID x 10mm OD x 532mm L

Incl (2) 23

1шт.

15

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

18

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

4шт.

19

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

20

47547435

BRACKET

1шт.

21

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

22

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

2шт.

23

4890929

O-RING,3mm Thk x 11mm ID

5шт.

24

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

87705123

FILTER HEAD

1шт.

28

87519307

SENSOR

Water

1шт.

29

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

1шт.

Выбрано товаров: 29
