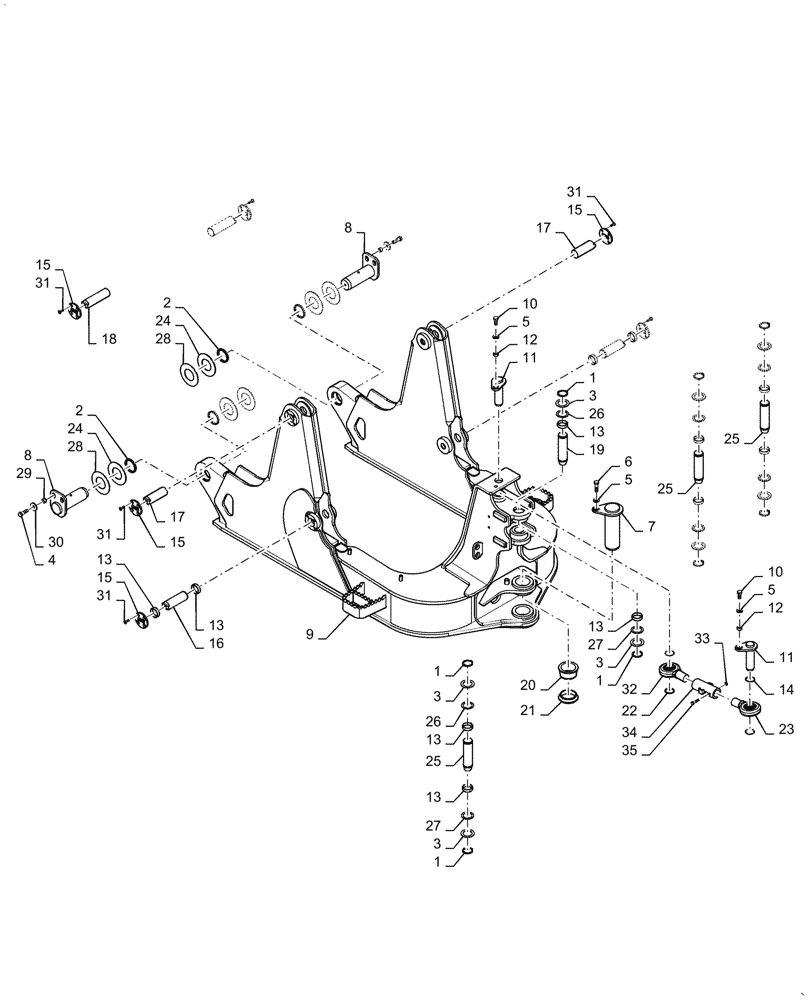

Запчасти Case 2050M LT PAT (86.124.010) - FRAME, C, PITCH AND, LINK (86) - DOZER
№
Артикул
Название
Примечание
Количество
1
103-16200
SNAP RING,#200, Ext
8шт.
2
D95147
WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk
4шт.
4
627-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
4шт.
5
896-15016
WASHER,17.5mm ID x 34mm OD x 5mm Thk
3шт.
6
9843611
BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9
1шт.
7
47361746
PIN,82.49mm OD x 271.6mm L
Blade
1шт.
8
47539780
PIN
C-Frame
2шт.
9
47542073
FRAME
1шт.
10
84246776
PREV TORQUE BOLT,Hex, M16 x 35mm, Cl 10.9
M16 x 35 x 10.9 ZND
2шт.
11
84380507
PIN,44.4mm OD x 175mm L
Cylinder Mount
2шт.
12
84380519
SPACER,16.5mm ID x 25.5mm OD x 12.75mm L
Mounting
2шт.
13
84385169
BUSHING,52.32mm ID x 57.15mm OD x 15.75mm L
Spacer
12шт.
14
84385270
SHIM,45.5mm ID x 53.5mm OD x 1mm Thk
1 mm
6шт.
15
84537897
PIVOT PLATE
Pin
6шт.
16
84537898
PIN,50.75mm OD x 156mm L
146 x 50.75mm
2шт.
17
84537899
PIN,50mm OD x 143.5mm L
133.5 x 50mm
2шт.
18
84537900
PIN,50mm OD x 177.8mm L
167.8 x 50mm
2шт.
19
84538461
PIN,50.75mm OD x 256.8mm L
256.8 x 50.75mm
1шт.
20
84538603
SPACER,82.8mm ID x 110mm OD x 51.05mm L
1шт.
21
84538604
SPACER,82.8mm ID x 110mm OD x 23.2mm L
1шт.
22
84541743
SHIM,45.5mm ID x 53.5mm OD x 3mm Thk
3 mm
2шт.
23
84550963
EYE,1-3/4" - 12
Right Hand Rod End
1шт.
24
87477364
SHIM
Swing Tower
4шт.
25
87546004
PIN,50.77mm OD x 200.8mm L
200.8 x 50.70mm Angle and Tilt Cylinder
3шт.
26
87690482
WASHER,2.03" ID x 2.75" OD x 0.07" Thk
2.031 x 2.75 x 0.075 HTS ZND
4шт.
27
87690483
WASHER,2.03" ID x 2.75" OD x 0.12" Thk
,2.031 x 2.75 x 0.12 HTS ZND
4шт.
28
134167A1
SHIM,72mm ID x 140mm OD x 2.05mm Thk
2 mm
4шт.
29
419041A1
SPACER
17.5 x 47.65 x 5.0 HTS ZND
4шт.
30
419223A1
WASHER
4шт.
31
906037R1
HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9
24шт.
32
87311755
BEARING ASSY,44.45 mm ID x 63.88 mm OD x 38.8239 mm
Left Hand Rod End
1шт.
33
412141
NUT,M10 x 1.5, Cl 8
1шт.
34
84550961
TUBE
Pitch Link
1шт.
35
43252
BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9
1шт.
Выбрано товаров: 35
