Запчасти Case 2050M LT BD (10.210.010) - VAR - 784622 - FUEL LINE & TANK, EU (10) - ENGINE

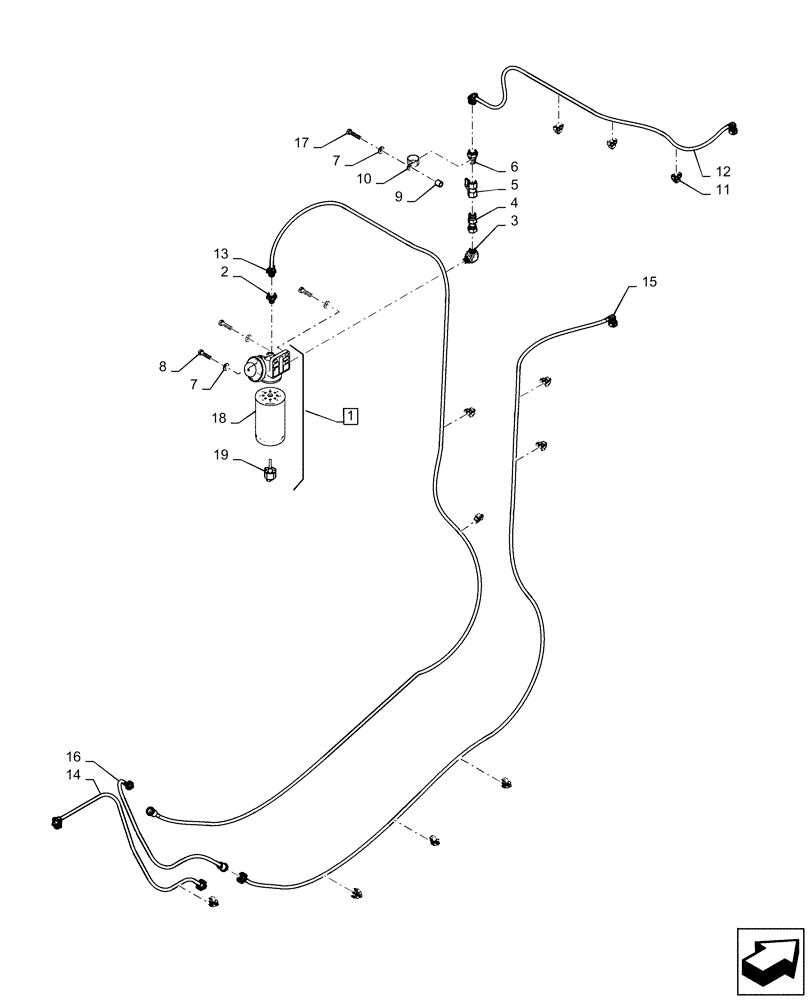

Схема запчастей Case 2050M LT BD - (10.210.010) - VAR - 784622 - FUEL LINE & TANK, EU (10) - ENGINE
7
13
7
19
5
10
6
3
18
12
11
2
1
15
9
16
17
8
14
4

Артикул

Название

Примечание

Количество

1

84348875

FILTER ASSY

Incl 18, 19

1шт.

2

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

4

84520680

HYD CONNECTOR

1шт.

5

86984713

SHUT-OFF VALVE

1шт.

6

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

8

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

3шт.

9

363082R1

SPACER,3/8" Pipe x .656"

1шт.

10

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

84298475

HOSE CLAMP

11шт.

12

47415599

FUEL TUBE,8.75mm ID x 10mm OD x 1275mm L

1шт.

13

47415597

FUEL TUBE,8.75mm ID x 10mm OD x 3840mm L

1шт.

14

47360119

FUEL TUBE

1шт.

15

47360121

FUEL TUBE,8.75mm ID x 10mm OD x 3120mm L

1шт.

16

84590423

FUEL TUBE,8.75mm ID x 10mm OD x 403mm L

1шт.

17

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

18

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

1шт.

19

87519307

SENSOR

Water

1шт.

Выбрано товаров: 19
