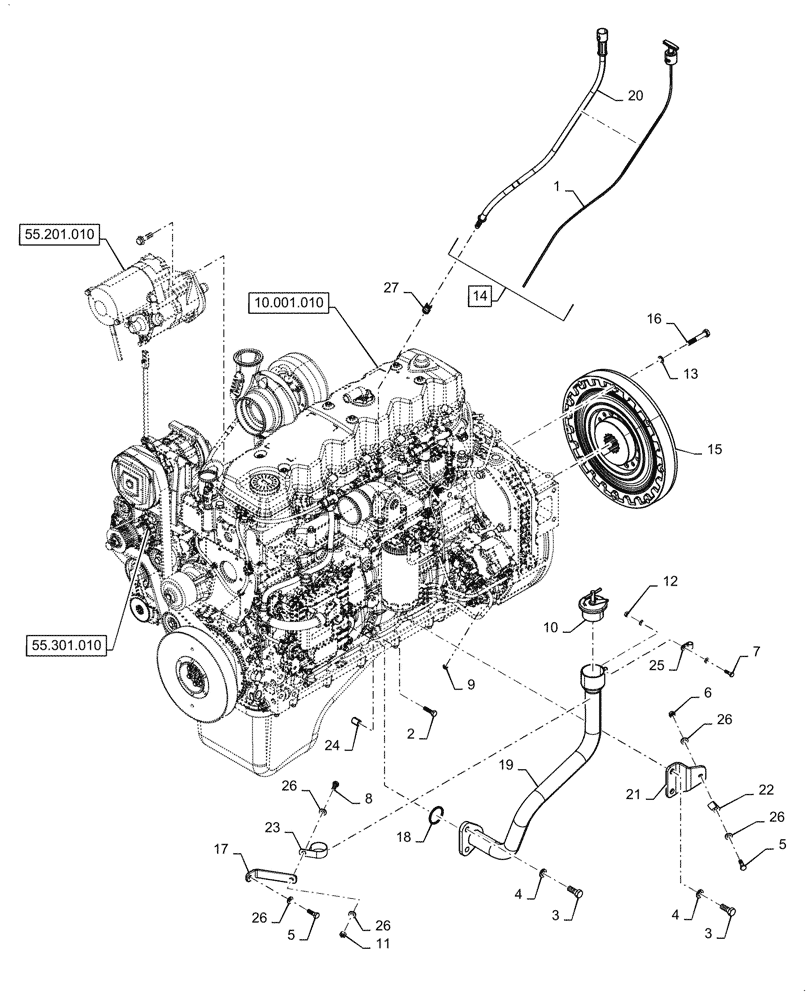

Запчасти Case 2050M LT BD (10.001.010) - VAR - 784622 - EU, ENGINE, ACCESSORIES (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

Dipstick, Incl in 14

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

4

892-11012

LOCK WASHER,M12

4шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

43362

NUT,M8 x 1.25, Cl 10

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

4895406

EXPANSION PLUG,9.8mm OD

1шт.

10

L115504

CAP

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

9706755

NUT,M6, Cl 8

1шт.

13

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

8шт.

14

47406777

DIPSTICK,892mm L

Assy, Incl 1, 20

1шт.

15

47479775

COUPLING

1шт.

16

47503561

LOCK BOLT,M10 x 60mm CL10.9 ZND

8шт.

17

87712130

FITTING

1шт.

18

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

19

84367009

TUBE

1шт.

20

NSS

NOT SOLD SEPARAT

Dipstick Tube, Incl in 14

1шт.

21

84398948

BRACKET

1шт.

22

84595634

BRACKET

1шт.

23

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

24

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

1шт.

26

87591914

CLAMP,11.1mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

27

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.
