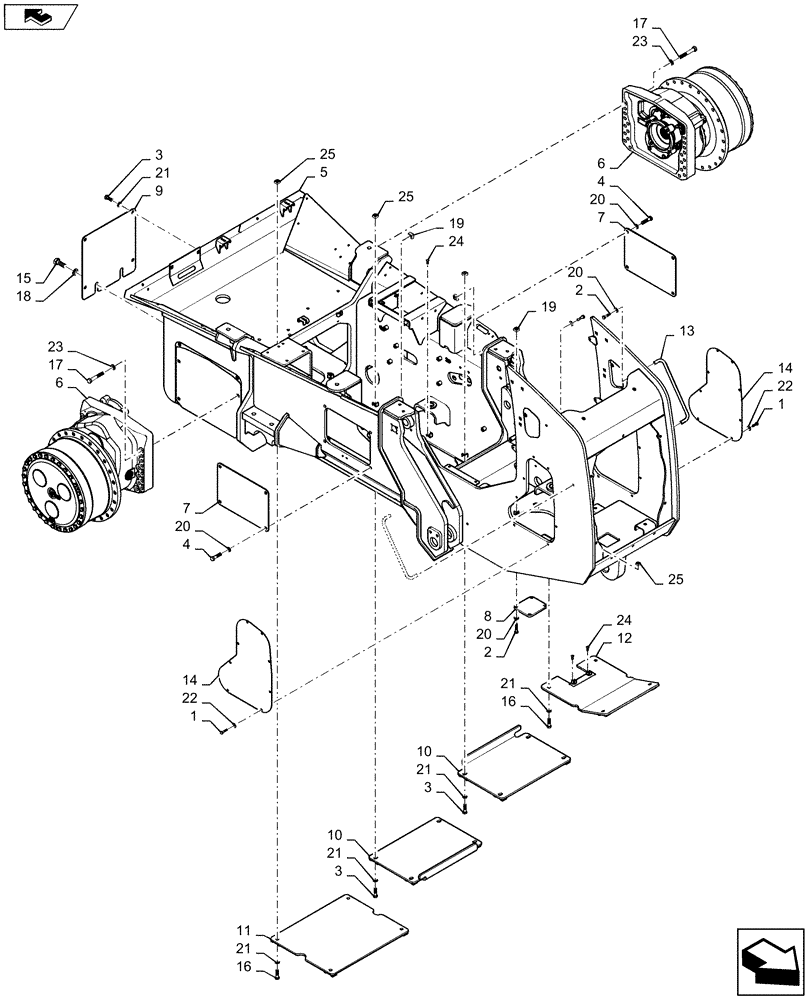

Запчасти Case 2050M LT (39.100.AB[04]) - MAIN FRAME, PAT, NARROW LT/XLT (39) - FRAMES AND BALLASTING

1

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

2

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

3

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

4

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

5

47484306

FRAME

1шт.

6

84373058

DRIVE ASSY.

2шт.

6

84364690R

REMAN-FINAL DRIVE

Reman For New PN 84373058

2шт.

6

84364690C

CORE-FINAL DRIVE

Return Number

2шт.

7

84375567

COVER

2шт.

8

84375837

PLATE

1шт.

9

84381503

PLATE

1шт.

10

84530197

COVER PLATE

2шт.

11

84530201

COVER PLATE

1шт.

12

84530204

COVER PLATE

1шт.

13

84544970

HANDLE

2шт.

14

84578277

COVER

2шт.

15

86639036

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

2шт.

16

86837482

BOLT,Hex, M16 x 55, 10.9, Full Thd

8шт.

17

87015929

BOLT,Hex, M20 x 120mm, Cl 10.9

44шт.

18

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

19

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

12шт.

20

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

16шт.

21

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

20шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

16шт.

23

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

44шт.

24

336371A1

PIN,4.88mm OD x 14.23mm L

32шт.

25

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

20шт.
