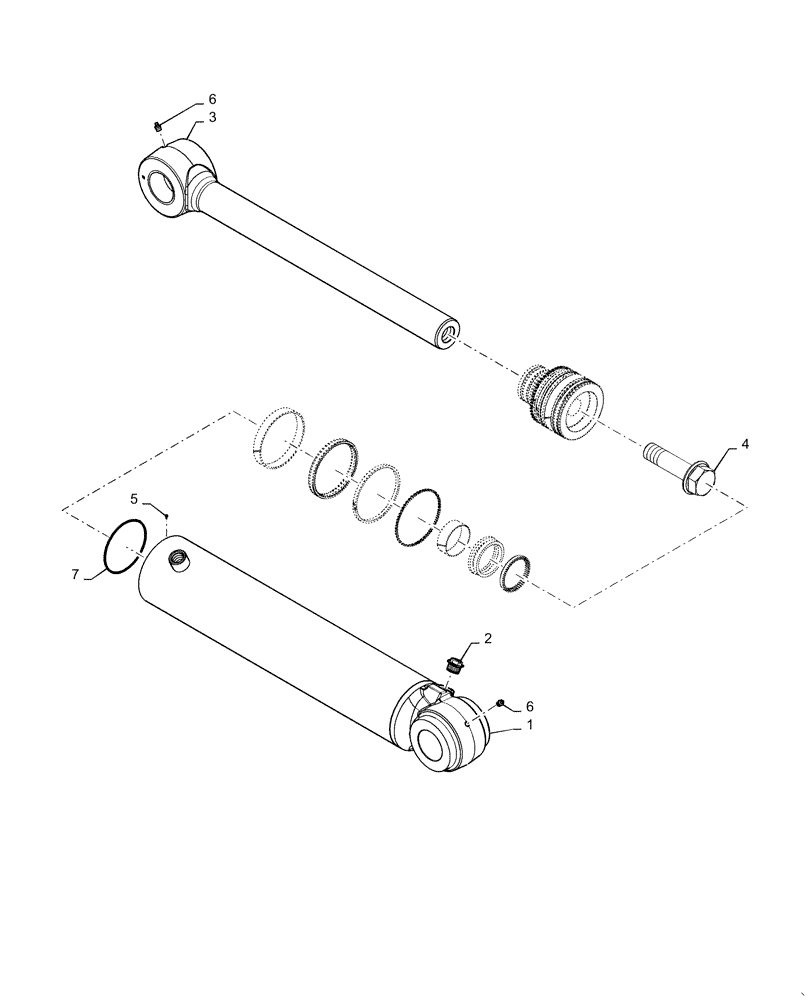

Запчасти Case 2050M LT (35.742.AA[02]) - DIPPER CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

47458145

HYDRAULIC CYLINDER,69.9mm Rod, 133.4mm Bore, 597.7mm Stroke

Dipper

1шт.

1

47458145R

REMAN-HYD CYLINDER

Dipper

1шт.

1

47458145C

CORE-HYD CYLINDER

Return Number

1шт.

2

353-782

PLUG,Slotted, 1 1/16"-12

2шт.

3

84594317

ROD,69.8mm OD

69.9 Diameter

1шт.

4

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

84259223

SEAL KIT,69.9mm Rod x 133.4mm Bore

Seals Not Serviced Individually, Must Order Kit

1шт.
