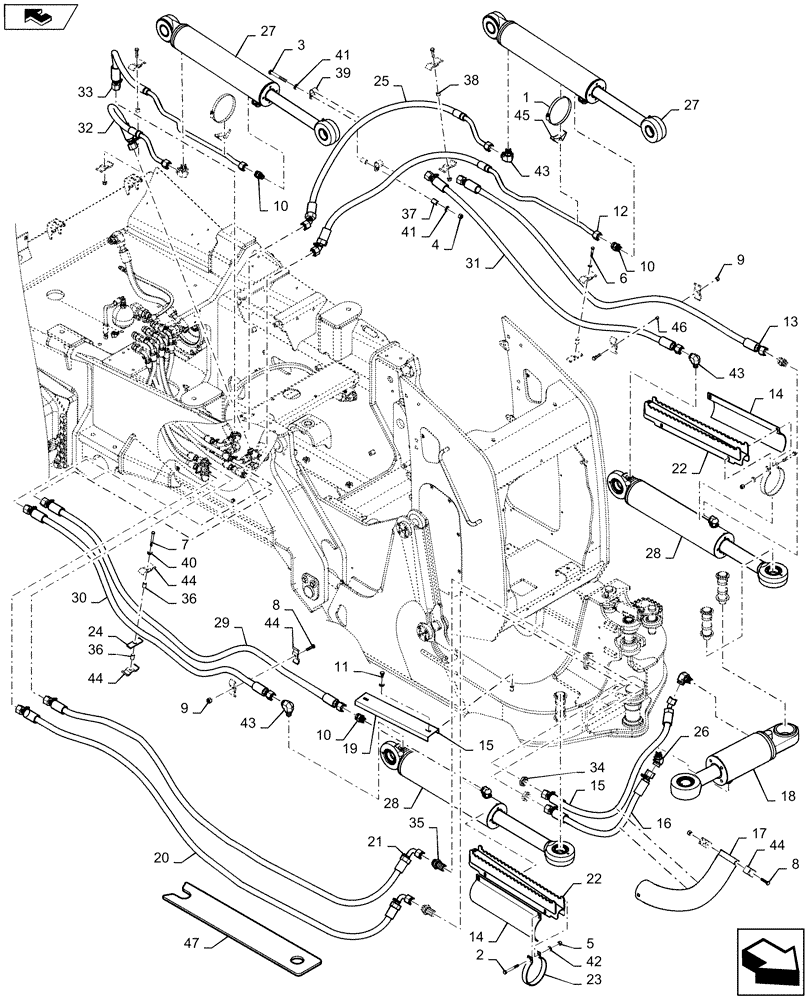

Запчасти Case 2050M LT (35.741.AJ [01]) - LIFT CYLINDER (PAT) LT (35) - HYDRAULIC SYSTEMS

1

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

4шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

3

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

1шт.

4

825-1412

NUT,M12, Cl 8

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

7

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

5шт.

9

412141

NUT,M10 x 1.5, Cl 8

5шт.

10

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

4шт.

11

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

12

47373873

TUBE

Lift Cylinder Rod End LH

1шт.

13

47406401

HYDRAULIC HOSE,19.05mm ID x 2475mm L, SAE 100R16

Angle Cylinder Rod End LH

1шт.

14

47444465

GUARD

Side Angle

2шт.

15

47445362

HOSE,19.05mm ID x 763.3mm L, SAE 100R16

Tilt Cylinder Rod End

1шт.

16

47445363

HOSE,19.05mm ID x 1076.7mm L, SAE 100R16

Tilt Cylinder Head End

1шт.

17

47446164

SLEEVE,68mm ID x 738mm L

Protective

1шт.

18

47446374

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 148.4mm Stroke

Tilt

1шт.

18

47446374R

REMAN-HYD CYLINDER

Tilt

1шт.

18

47446374C

CORE-HYD CYLINDER

Return Number

1шт.

19

47447722

GUARD

Tilt Lines

1шт.

20

47449942

HOSE,19.05mm ID x 2976.2mm L, SAE 100R16

Tilt Cylinder Head End

1шт.

21

47449943

HOSE,19.05mm ID x 3036.8mm L, SAE 100R16

Titl Cylinder Rod End

1шт.

22

47461428

GUARD

Angle Cylinder

2шт.

23

47461431

CLAMP,135mm

4шт.

24

47496506

PLATE

Spacer

2шт.

25

47519692

HYDRAULIC HOSE

Lift Cylinder Tube End LH

1шт.

26

84401339

45 ELBOW

ADJ -12 ORFS X 7/8-14 ORB

1шт.

27

84402335

LIFT CYLINDER,Double Acting, 63.5mm Rod, 428.8mm Stroke

2шт.

27

84402335R

REMAN-HYD CYLINDER

2шт.

27

84402335C

CORE-HYD CYLINDER

Return Number

2шт.

28

84402336

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke

2шт.

28

84402336R

REMAN-HYD CYLINDER

2шт.

28

84402336C

CORE-HYD CYLINDER

Return Number

2шт.

29

84539535

HYDRAULIC HOSE,19.05mm ID x 2350mm L, SAE 100R16

Angle Cylinder Rod End RH

1шт.

30

84539537

HYDRAULIC HOSE,19.05mm ID x 1900mm L, SAE 100R16

Angle Cylinder RH

1шт.

31

84539540

HYDRAULIC HOSE,19.05mm ID x 1730mm L, SAE 100R16

Angle Cylinder LH

1шт.

32

84543174

HYD TUBE

Lift Cylinder Head End RH

1шт.

33

84543175

HYD TUBE

Lift Cylinder Rod End RH

1шт.

34

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

35

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

2шт.

36

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

3шт.

37

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

3/4 x 1.188 Tube

2шт.

38

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

3/8 x 0.562 X Pipe

2шт.

39

87547970

CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

40

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

41

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12 13.65 x 24.9 x 3.2

2шт.

42

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10шт.

43

87656136

HYD CONNECTOR

90 ADJ -12 ORFS x 7/8-14 ORB

5шт.

44

434130A1

HOSE CLAMP

13шт.

45

D142787

SPACER

Saddle Tub Support

4шт.

46

436110A1

SPACER

1шт.

47

47549213

GUARD

Lower Tilt Lines

1шт.
