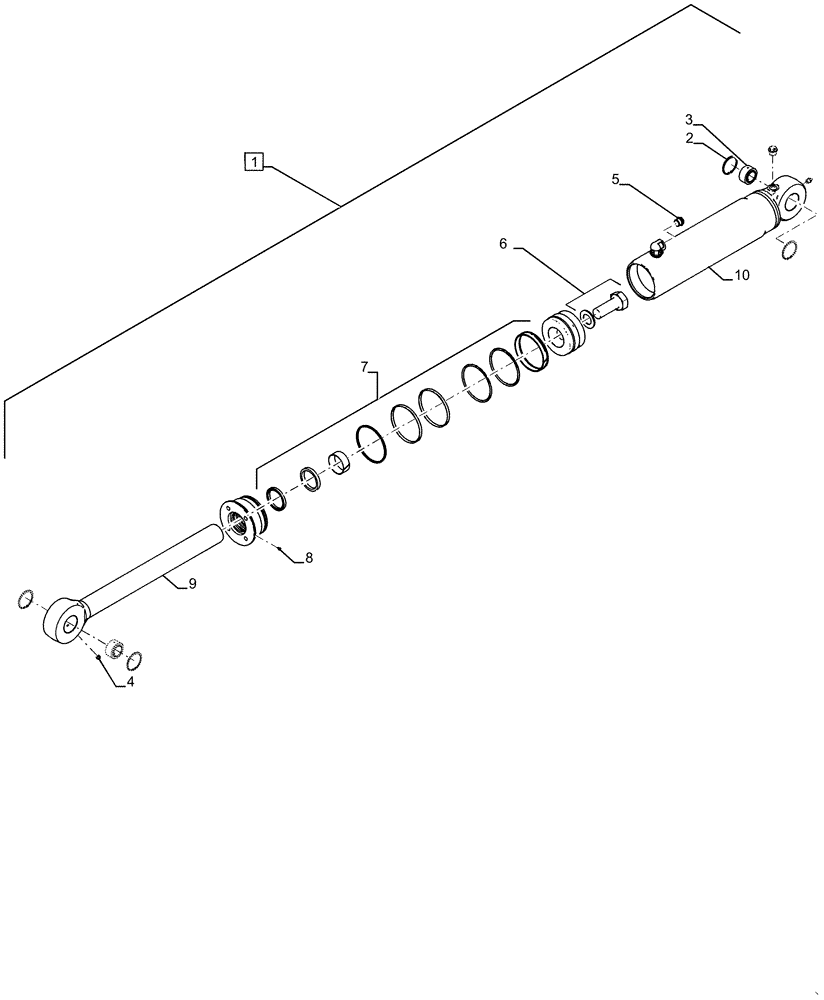

Запчасти Case 2050M LT (35.741.AJ[05]) - ANGLE, CYLINDER 114.3 X 63.5MM (35) - HYDRAULIC SYSTEMS

1

84402336

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 502.7mm Stroke

114.3 x 63.5 Incl 2 - 8

1шт.

1

84402336R

REMAN-HYD CYLINDER

114.3 x 63.5 Incl 2 - 8

1шт.

1

84402336C

CORE-HYD CYLINDER

Return Number

1шт.

2

100-21315

SNAP RING,3.156", Int, #315

4шт.

3

D23601

HOUSING

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

6

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

7

84479825

SEAL KIT

1шт.

8

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

9

NSS

NOT SOLD SEPARAT

Cyinder Rod, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Cylinder Body, Incl in 1

1шт.
