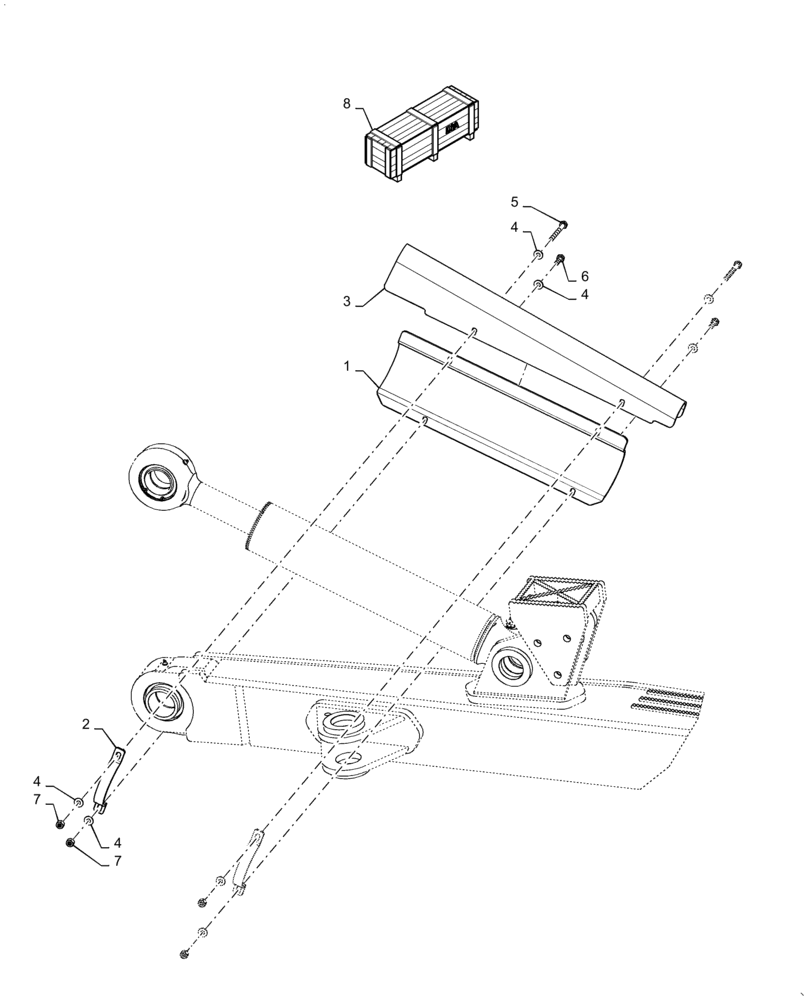

Запчасти Case 2050M LT (35.741.AD ) - KIT, TILT CYLINDER, GUARD (35) - HYDRAULIC SYSTEMS

1

47811051

CLAMP

Cylinder Guard

1шт.

2

47811056

CLAMP

Cylinder Guard

2шт.

3

47811276

GUARD

Tilt Cylinder

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

5

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

7

412141

NUT,M10 x 1.5, Cl 8

4шт.

8

47858892

KIT

Tilt Cylinder Guard, Inst. 47858897, Incl 1 - 7

1шт.
