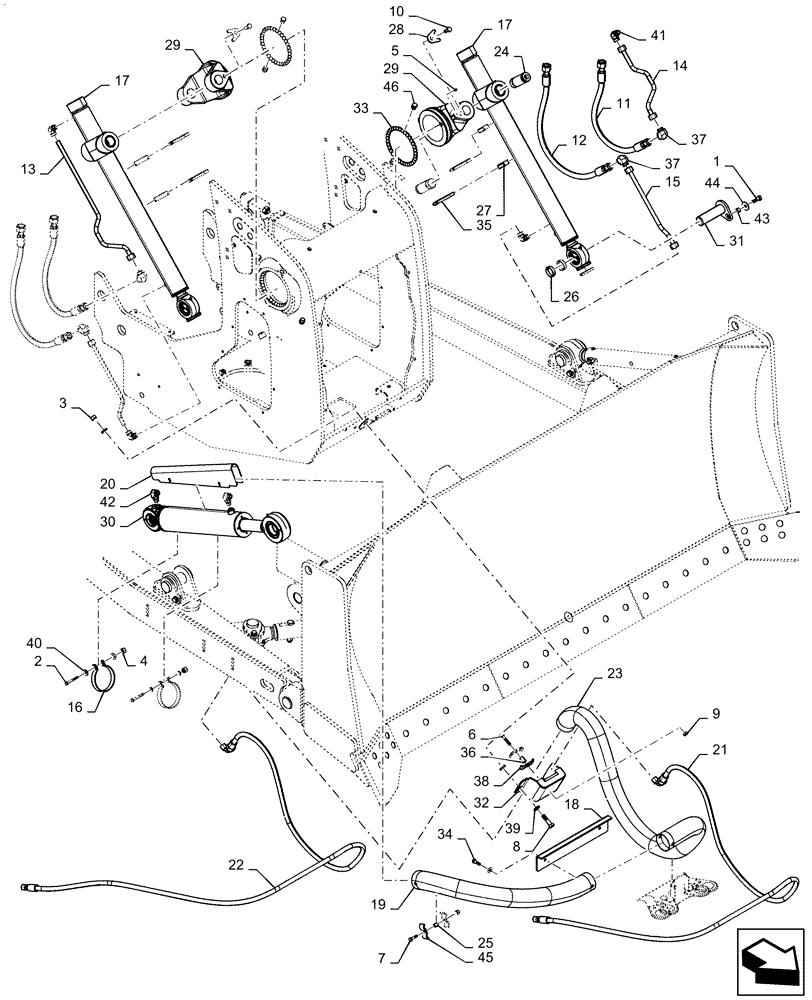

Запчасти Case 2050M LT (35.741.AA [01]) - LIFT CYLINDER (BD) LT (35) - HYDRAULIC SYSTEMS

1

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

829-1412

NUT,M12, Cl 10.9

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

6шт.

6

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

7

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

8

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

9

412141

NUT,M10 x 1.5, Cl 8

2шт.

10

14257831

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

4шт.

11

47375290

HYDRAULIC HOSE,19.05mm ID x 895mm L, SAE 100R16

Lower Port

2шт.

12

47375292

HYDRAULIC HOSE,19.05mm ID x 1105mm L, SAE 100R16

Lift Rod End

2шт.

13

47380601

HYD TUBE

RH Lift Cyl. Head End

1шт.

14

47380602

HYD TUBE

LH Lift Cyl. Head End

1шт.

15

47722996

HYD TUBE

Lift Rod End

2шт.

16

47461431

CLAMP,135mm

Guard

2шт.

17

47469504

LIFT CYLINDER,Double Acting, 50.8mm Rod, 1074mm Stroke

82.6mm x 50.8mm

2шт.

17

47469504R

REMAN-HYD CYLINDER

82.6mm x 50.8mm

2шт.

17

47469504C

CORE-HYD CYLINDER

82.6mm x 50.8mm

2шт.

18

47571859

GUARD

1шт.

19

47572006

SLEEVE

Protective

1шт.

20

47574747

GUARD

Tilt

1шт.

21

47575986

HOSE,15.88mm ID x 3843mm L, SAE 100R16

Tilt Cylinder Cap

1шт.

22

47575987

HOSE,15.88mm ID x 3160mm L, SAE 100R16

Tilt Cylinder Rod

1шт.

23

47577076

SLEEVE

Protective

1шт.

24

47652409

PIN

Blade Lift Cyl.

4шт.

25

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

5/8 Tube x 12mm

1шт.

26

84385169

BUSHING,52.32mm ID x 57.15mm OD x 15.75mm L

Spacer

4шт.

27

84405556

CLAMP

Cylinder Saddle

6шт.

28

84409095

SPECIAL WASHER

4шт.

29

84467808

CLEVIS

Lift Cylinder

2шт.

30

84546645

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 126mm Stroke

Tilt

1шт.

30

84546645R

REMAN-HYD CYLINDER

Tilt

1шт.

30

84546645C

CORE-HYD CYLINDER

Tilt

1шт.

31

84568811

PIN,50.75mm OD x 198mm L

Lift Cylinder

2шт.

32

84576004

BRACKET

Hose

1шт.

33

86624946

BALL,3/4" Dia

70шт.

34

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

35

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

6шт.

36

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

3/4 tube x 30.18mm

1шт.

37

87378036

ELBOW

Union Elbow, 90 -12 ORFS

4шт.

38

87420673

HOSE CLAMP

2шт.

39

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

40

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

41

87656136

HYD CONNECTOR

Elbow, 90 ADJ -12 ORFS x 7/8-14 ORB

4шт.

42

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Elbow, 90 ADJ -10 ORFS x 7/8-14 ORB

2шт.

43

419041A1

SPACER

Bushing

2шт.

44

419223A1

WASHER

2шт.

45

434130A1

HOSE CLAMP

2шт.

46

D28481

PLUG

4шт.
