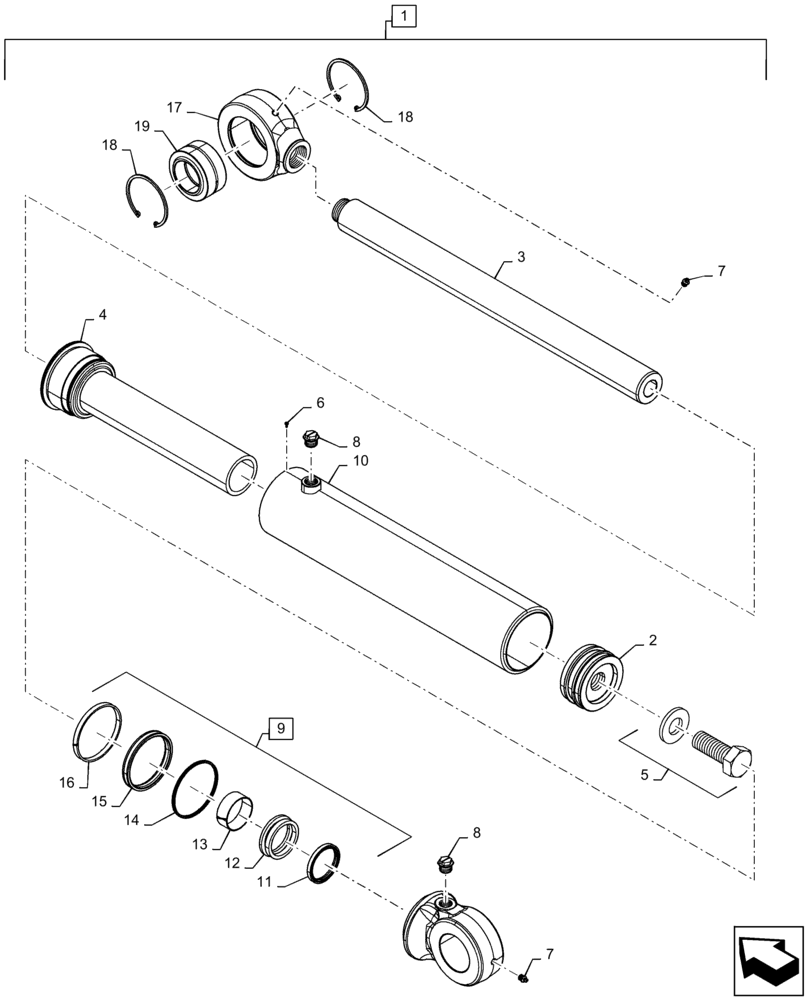

Запчасти Case 2050M LT (35.741.AA[10]) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

84546645

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 126mm Stroke

Tilt, Incl 1 - 16

1шт.

1

84546645R

REMAN-HYD CYLINDER

Tilt

1шт.

1

84546645C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Package Assy

1шт.

3

NSS

NOT SOLD SEPARAT

Rod

1шт.

4

NSS

NOT SOLD SEPARAT

Spacer

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt and Washer Assy

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

9

84479825

SEAL KIT

Tilt, Cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

Tube

1шт.

11

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

12

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

13

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

14

NSS

NOT SOLD SEPARAT

Static Head

1шт.

15

NSS

NOT SOLD SEPARAT

Seal Assy

1шт.

16

G103284

GASKET

Wear Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Eye, Rod, 63.5mm

1шт.

18

370026

SNAP RING,M100 x 3mm Thk, Internal

2шт.

19

84547992

BUSHING

1шт.
