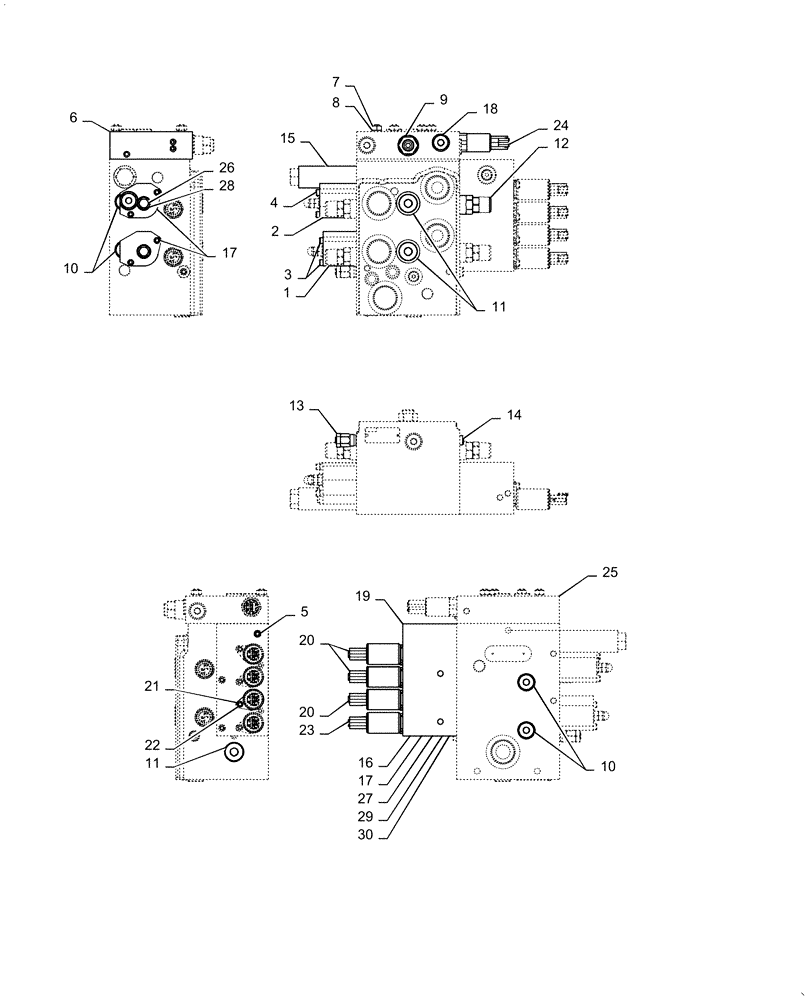

Запчасти Case 2050M LT (35.359.AG[02]) - CONTROL VALVE ASSEMBLY, 2-SPOOL (35) - HYDRAULIC SYSTEMS

1

87516585

COVER

Pilot Tilt

1шт.

2

87516587

COVER

Pilot Lift

1шт.

3

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

2шт.

4

14301521

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

5

87518268

SCREW,M5 x 80mm, Gr 8.8

5шт.

6

47358540

HOUSING

End Cover

1шт.

7

14302231

SCREW,M8 x 55mm, Cl 10.9

4шт.

8

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

Spring Lock

4шт.

9

47505632

VALVE

Sike Clipper

1шт.

10

8604567

VALVE, CHECK

Check Valve

4шт.

11

87516612

PLUG

Plug

3шт.

12

47358908

VALVE

4шт.

13

8602925

VALVE PRESSURE RELIE

Relief

1шт.

14

87613469

HYDRAULIC VALVE

Flow Limiting

1шт.

15

47358929

VALVE

Counter Balance

1шт.

16

8604582

RETAINER

Retainer Spring M6 Valve

2шт.

17

87516617

SPRING

Pressure Spring

4шт.

18

87362307

CHECK VALVE

Check Valve

1шт.

19

47358947

COVER

1шт.

20

47359003

VALVE

3шт.

21

47359007

PLATE

4шт.

22

14304621

SCREW,M5 x 14mm, Cl 8.8, Full Thd

4шт.

23

47359011

VALVE

1шт.

24

87516636

HYDRAULIC VALVE

Safety Valve

1шт.

25

47359013

SEAL KIT

Seal Kit

1шт.

26

87311984

RETAINER

Retainer Spring

2шт.

27

87311985

SPRING

1шт.

28

87311986

RING

1шт.

29

87516620

RETAINER

Retainer Spring

1шт.

30

8604582

RETAINER

Retainer Spring M6 Valve

2шт.
