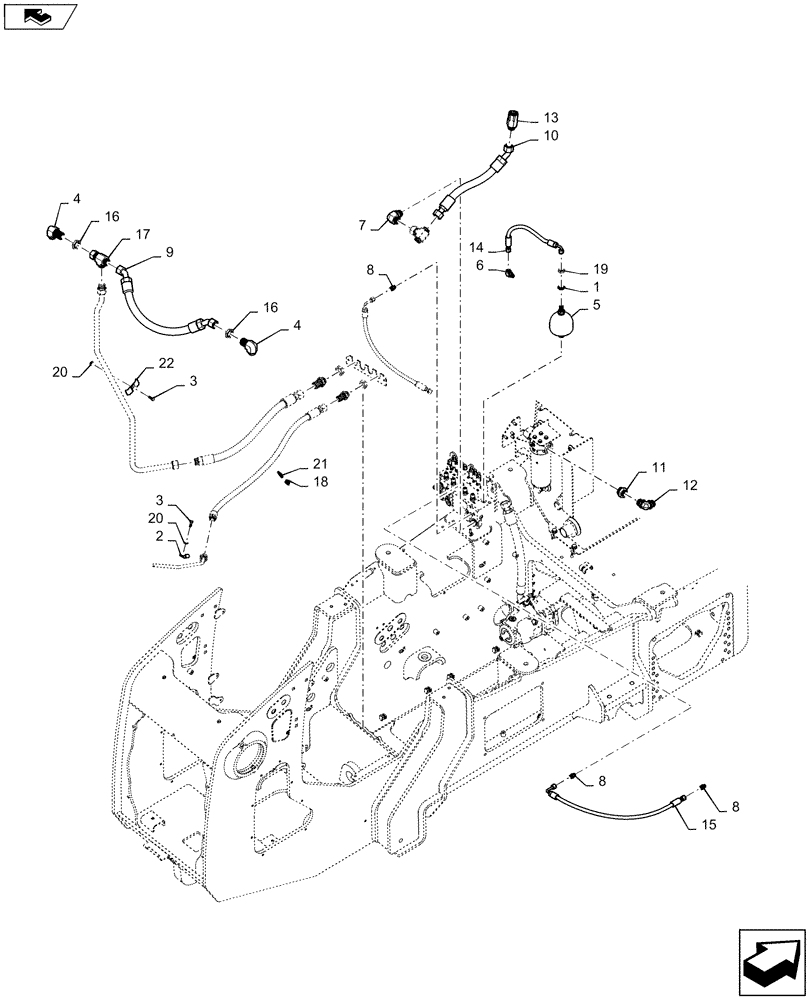

Запчасти Case 2050M LT (35.359.AE[02]) - HYDRAULIC LIFT (BD) (35) - HYDRAULIC SYSTEMS

1

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

2

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

701-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

4шт.

5

8501047

ACCUMULATOR

1шт.

6

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

7

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

1шт.

8

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

3шт.

9

47475866

HOSE ASSY.,25.4mm ID x 783mm L, SAE 100R12

2шт.

10

47544247

HYDRAULIC HOSE

Valve to Filter

1шт.

11

47544518

REDUCER

1шт.

12

47544528

ELBOW UNION,-16, 90 Degree Adj, 1 5/16"-12 Male x 1 5/16"-12, Male, ORB

1шт.

13

84377913

CHECK VALVE

1шт.

14

84384021

HOSE ASSY.,9.53mm ID x 441mm L, SAE 100R16

1шт.

15

84385320

HOSE ASSY.,9.53mm ID x 881mm L, SAE 100R16

1шт.

16

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

4шт.

17

86641295

TEE,1-7/16"-12 ORFS to Swivel

2шт.

18

86982400

SPACER

2шт.

19

87010704

BHD LOCK NUT,11/16"-16

1шт.

20

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

22

R36022

CLAMP

1шт.
