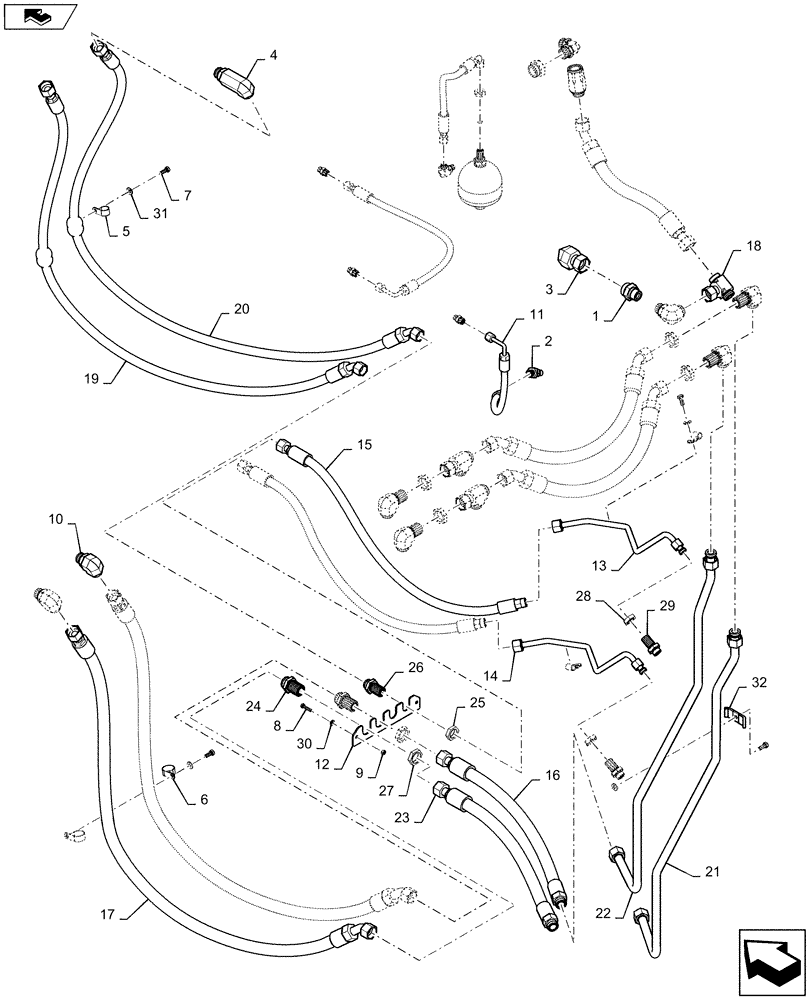

Запчасти Case 2050M LT (35.359.AE[02]) - HYDRAULIC LIFT (BD) (35) - HYDRAULIC SYSTEMS

1

201-134

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/16"-12 ORB

1шт.

2

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

1шт.

3

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

1шт.

4

201-379

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

2шт.

5

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

6

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

2шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

8

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

2шт.

11

47371608

HYDRAULIC HOSE,9.53mm ID x 657mm L, SAE 100R16

1шт.

12

47389460

BULKHEAD

1шт.

13

47389858

TUBE

1шт.

14

47389873

TUBE

1шт.

15

47396098

HYDRAULIC HOSE,19.05mm ID x 1066.5mm L, SAE 100R16

2шт.

16

47396103

HYDRAULIC HOSE,25.4mm ID x 709mm L, SAE 100R12

1шт.

17

47396104

HYDRAULIC HOSE,25.4mm ID x 1968mm L, SAE 100R12

2шт.

18

47462695

TEE

1шт.

19

47476776

HOSE,19.05mm ID x 2043mm L, SAE 100R16

1шт.

20

47476777

HOSE,19.05mm ID x 2244mm L, SAE 100R16

1шт.

21

47514988

HYD TUBE

1шт.

22

47514990

HYD TUBE

1шт.

23

47516535

HOSE,25.4mm ID x 655mm L, SAE 100R12

1шт.

24

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

2шт.

25

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

26

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

2шт.

27

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

28

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

29

86978771

UNION,16mm L

2шт.

30

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

31

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

32

R36022

CLAMP

2шт.
