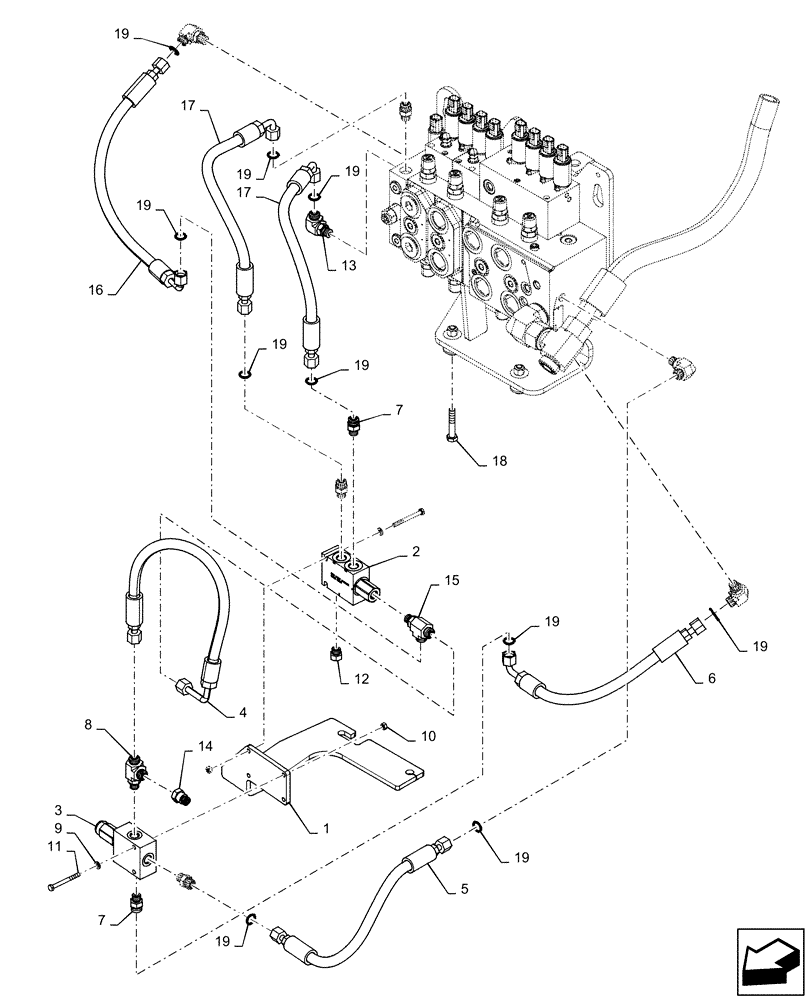

Запчасти Case 2050M LT (35.353.AD[01]) - VALVES, REDUCING AND FLUSHING (35) - HYDRAULIC SYSTEMS

1

47549372

BRACKET

Pressure Reducing Valve

1шт.

2

47448727

VALVE

Pressure Reducing

1шт.

3

47544560

VALVE

Pump Flushing

1шт.

4

47552452

HOSE,9.53mm ID x 581mm L, SAE 100R16

Flushing Valve P

1шт.

5

47552459

HOSE,9.53mm ID x 456mm L, SAE 100R16

Flushing Valve LS

1шт.

6

47552439

HOSE,9.53mm ID x 397mm L, SAE 100R16

Flushing Valve Return

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

5шт.

8

47462226

TEE

ORFS ADJ 3/8" SPCL Orifice

1шт.

9

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.

10

9706755

NUT,M6, Cl 8

4шт.

11

86639189

BOLT,Hex, M6 x 60mm, Cl 10.9

4шт.

12

76349

PLUG,9/16" - 18 ORB

1шт.

13

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

4шт.

14

84559728

REDUCER

-4M x -6F ORFS

1шт.

15

87305436

HYD CONNECTOR

Tee, ORFS ADJ 3/8"

1шт.

16

47552435

HOSE,9.53mm ID x 525mm L, SAE 100R16

Pressure Reducing Valve P

1шт.

17

47552354

HOSE,9.53mm ID x 496mm L, SAE 100R16

Pressure Reducing Valve Drain

2шт.

18

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.
