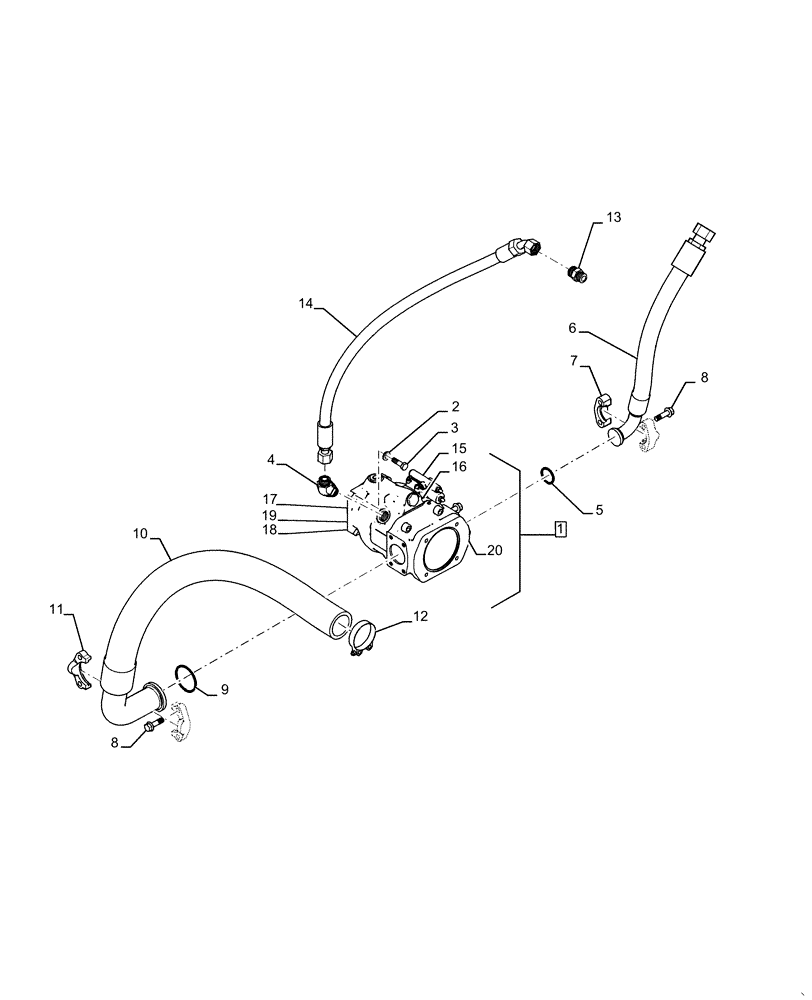

Запчасти Case 2050M LT (29.218.AO [04]) - HYDROSTATIC PUMP (29) - HYDROSTATIC DRIVE

1

47374438

PUMP,85 CC

Main Incl 15 - 20

1шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

13.65 x 24.9 x 3.2mm

4шт.

3

47446999

BOLT

M12 x 40 Class 10.9 ZND

4шт.

4

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

5

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

6

47371604

HYDRAULIC HOSE,31.5mm ID x 690mm L, SAE 100R12

Valve Supply

1шт.

7

86980733

CLAMP

Split Flange

2шт.

8

47522099

BOLT

1/2 - 13 x 1.75 GR8

8шт.

9

87421143

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

10

47474570

HOSE,63.5mm ID x 1072mm L, SAE 100R4

Suction

1шт.

11

70921588

HYD CONNECTOR

Split Flange

2шт.

12

214-2164

CLAMP,#64, 2.87"-3.18", T-Bolt

1шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

14

47474571

HOSE,19.05mm ID x 1073.5mm L, SAE 100R1

Pump to Drain Manifold

1шт.

15

47359201

CONTROL VALVE

DFRI Compensator

1шт.

16

87553152

GASKET

Control Valve

1шт.

17

47359634

SEALING RING

Shaft

1шт.

18

47395108

SEAL KIT

1шт.

19

87597267

RING

Seeger

1шт.

20

87358545

O-RING,3mm Thk x 130mm ID

1шт.
