Запчасти Case 2050M LT (29.218.AC[01]) - HYDROSTATIC TRANSMISSION (29) - HYDROSTATIC DRIVE

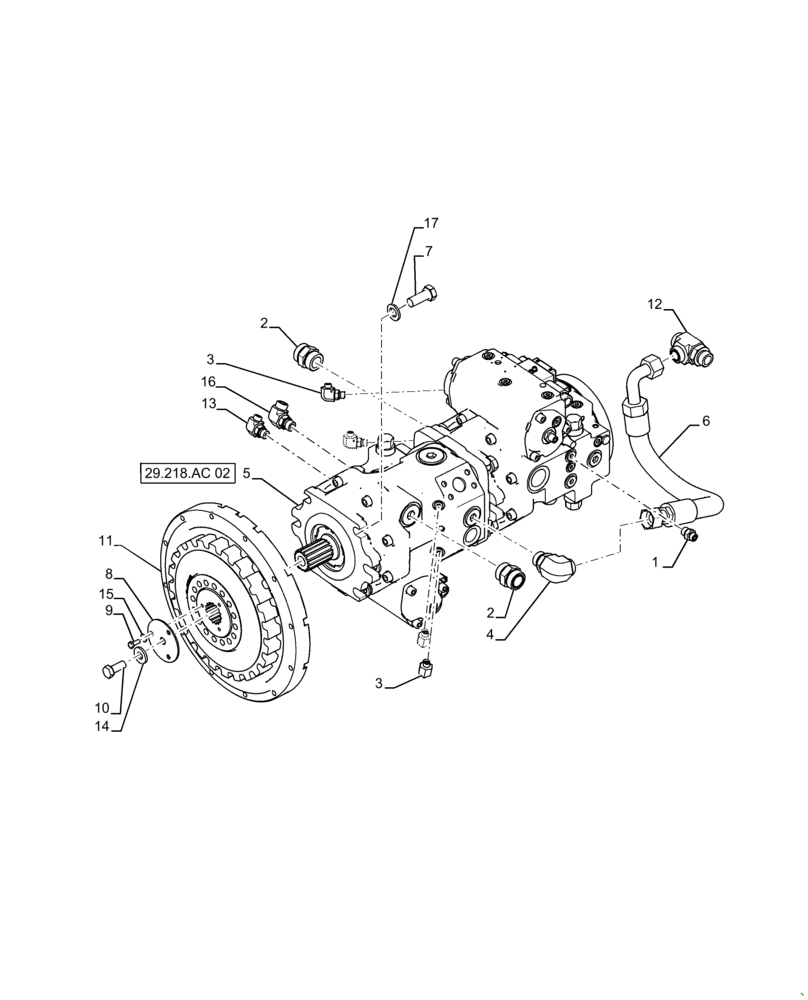

Схема запчастей Case 2050M LT - (29.218.AC[01]) - HYDROSTATIC TRANSMISSION (29) - HYDROSTATIC DRIVE
11
3
16
3
14
13
8
6
15
17
12
29.218.ac 02
4
1
2
7
2
5
10
9

Артикул

Название

Примечание

Количество

1

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

2

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

3

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

4шт.

4

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

90 ADJ 1.0 ORFS - ORB 1.0

1шт.

5

47366244

HYDRAULIC PUMP

145CC

1шт.

5

47366244R

REMAN-HYDROSTAT PUMP

145CC

1шт.

5

47366244C

CORE-HYDROSTAT PUMP

Return Number

1шт.

6

47397561

HYDRAULIC HOSE,25.4mm ID x 700mm L, SAE 100R16

Pump FA and FE

1шт.

7

9843590

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

6шт.

8

47479903

STOP

Flexible Coupler

1шт.

9

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

3шт.

10

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

1шт.

11

47569456

PLATE

Mount

1шт.

12

84238740

FITTING

Tee, ORFS ADJ STR THD RUN 1.0

1шт.

13

84390792

90 ELBOW

90 ADJ Jump 3/8 ORFS - ORB 1/2

1шт.

14

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

1шт.

15

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

16

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

90 ADJ 5/8 ORFS - ORB 5/8

1шт.

17

87713134

SPECIAL WASHER

21.25 x 38.1 x 4.2mm

6шт.

Выбрано товаров: 19
