Запчасти Case 2050M LT (10.414.AC[02]) - FAN (10) - ENGINE

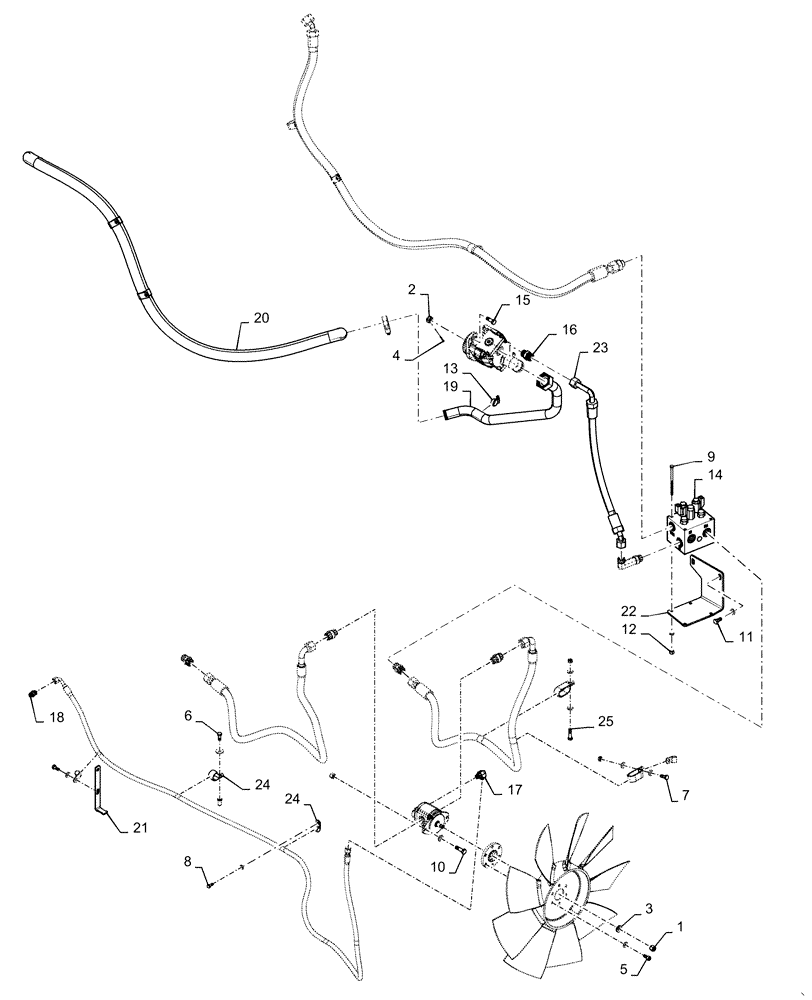

Схема запчастей Case 2050M LT - (10.414.AC[02]) - FAN (10) - ENGINE
4
15
24
1
20
12
14
19
2
21
7
8
13
9
24
5
3
23
10
16
25
17
11
18
6
22

Артикул

Название

Примечание

Количество

1

232-2448

NUT,1/2"-20, GC

1шт.

2

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

4

733-3232

COTTER PIN,M3.2 x 32

1шт.

5

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

6шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

300807

BOLT,Hex, M8 x 140, 8.8

4шт.

10

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

11

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

12

412250

NUT,M8 x 1.25, Cl 8

4шт.

13

513309

HOSE CLAMP,1-1/16" - 2", Worm

1шт.

14

8500565

HYDRAULIC VALVE

Fan Speed and Reverser

1шт.

15

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

16

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3шт.

17

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

18

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

19

47530507

RIGID TUBE

Fan Pump Supply

1шт.

20

47530509

HOSE ASSY.,38.1mm ID x 1730mm L, SAE 100R4

Fan Supply

1шт.

21

47530510

ANGLE

Tube Support

1шт.

22

47538586

MOUNT

Fan Valve

1шт.

23

47601008

HOSE,19.05mm ID x 690mm L, SAE 100R16

Pump to Valve

1шт.

24

47621918

CLAMP,17.5mm, Coat, 11.9mm Bolt Hole, P Type

5шт.

25

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 25
