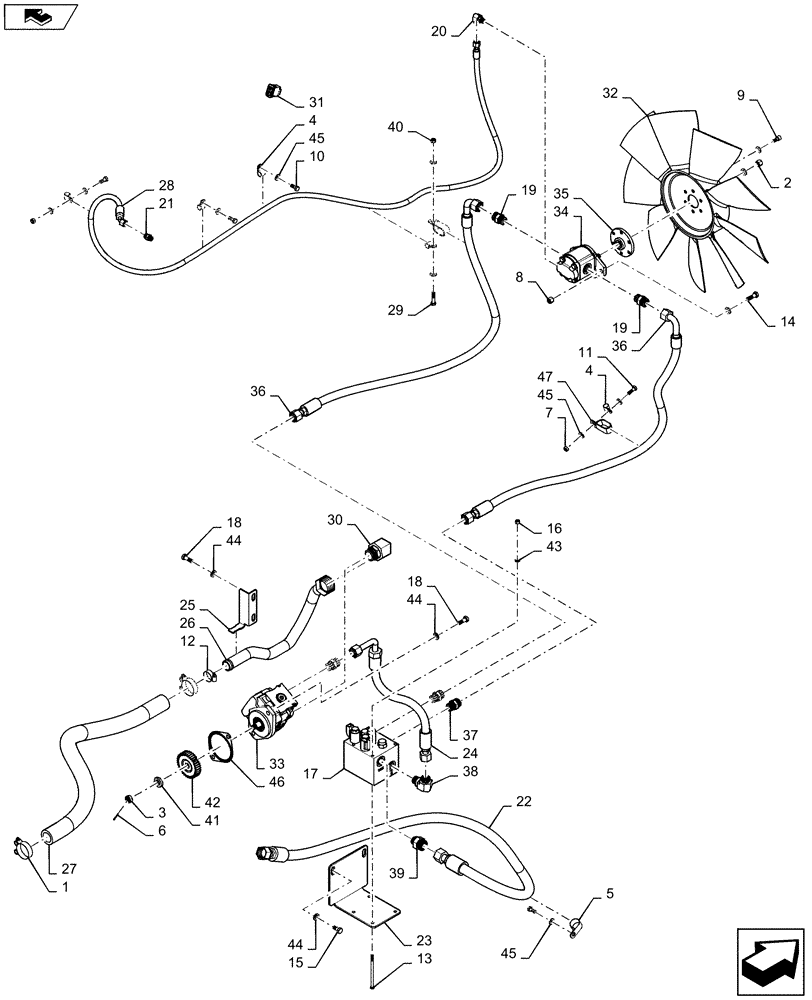

Запчасти Case 2050M LT (10.414.AC[01]) - FAN (10) - ENGINE

1

84180945

COLLAR CLAMP,1.87" - 2.18"

2шт.

2

232-2448

NUT,1/2"-20, GC

1шт.

3

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

4

47621918

CLAMP,17.5mm, Coat, 11.9mm Bolt Hole, P Type

5шт.

5

87353455

CLAMP,34.9mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

6

733-3232

COTTER PIN,M3.2 x 32

1шт.

7

86500689

NUT,M10 x 1.5, Cl 10

1шт.

8

87497916

NUT

2шт.

9

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

6шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

12

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

13

300807

BOLT,Hex, M8 x 140, 8.8

4шт.

14

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

15

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

16

412250

NUT,M8 x 1.25, Cl 8

4шт.

17

8500565

HYDRAULIC VALVE

1шт.

18

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

19

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3шт.

20

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

21

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

22

47446951

HOSE,9.53mm ID x 2970mm L, SAE 100R1

1шт.

23

47372426

HYDRAULIC HOSE,25.4mm ID x 2180mm L, SAE 100R16

1шт.

24

47538586

MOUNT

1шт.

25

47432129

PLATE

1шт.

26

47408419

HYDRAULIC HOSE,19.05mm ID x 700mm L, SAE 100R16

1шт.

27

47432556

TUBE

1шт.

28

47436913

HOSE,38.1mm ID x 1693mm L, SAE 100R4

1шт.

29

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

30

84256799

90 ELBOW

1шт.

31

84375593

SWITCH

1шт.

32

84385174

FAN,9 Blades, 700mm OD

1шт.

33

84398131

HYDRAULIC PUMP,33 CC

1шт.

33

84398131R

REMAN-HYD PUMP

1шт.

33

84398131C

CORE-HYDRAULIC PUMP

Return Number

1шт.

34

84398132

HYDRAULIC MOTOR,GEAR, 19 CC

1шт.

34

84398132R

REMAN-HYD MOTOR

1шт.

34

84398132C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

35

84474439

HUB

1шт.

36

84592532

HYDRAULIC HOSE,19.05mm ID x 1670mm L, SAE 100R16

2шт.

37

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

38

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

39

86639051

HYD CONNECTOR,1-7/16" - 12 ORFS x M27 x 2 ORB

1шт.

40

87030549

NUT,M10 x 1.5, Cl 10

1шт.

41

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

1шт.

42

87389871

GEAR

1шт.

43

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

44

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

9шт.

45

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

11шт.

46

A77441

GASKET

1шт.

47

242999A1

CLAMP

2шт.
