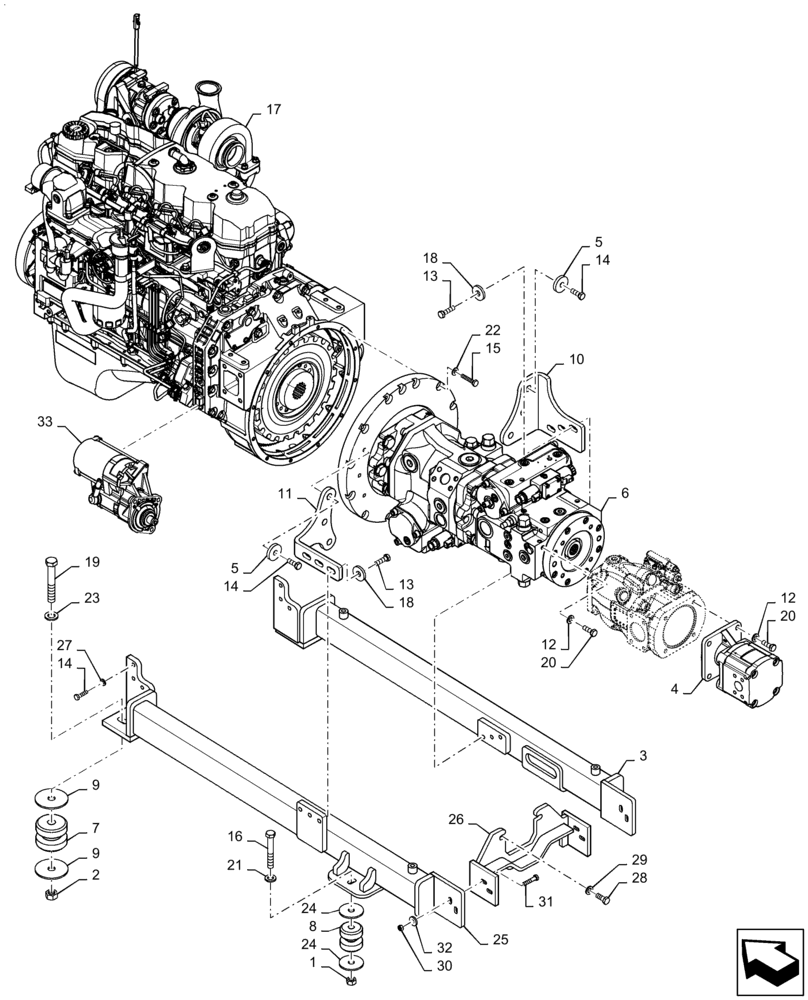

Запчасти Case 2050M LT (10.001.AK [01]) - ENGINE (10) - ENGINE

1

392530

NUT,M16, Cl 10

2шт.

2

9847024

NUT,M20, Cl 10

2шт.

3

47438235

MEMBER

RH

1шт.

4

47377786

PUMP,61.26 CC

1шт.

5

47390042

WASHER,13mm ID x 50mm OD x 10mm Thk

6шт.

6

47366244

HYDRAULIC PUMP

1шт.

6

47366244R

REMAN-HYDROSTAT PUMP

1шт.

6

47366244C

CORE-HYDROSTAT PUMP

Return Number

1шт.

7

47401044

ENGINE MOUNT

2шт.

8

47401045

ENGINE MOUNT

2шт.

9

47767400

WASHER

4шт.

10

47438230

BRACKET

1шт.

11

47438231

BRACKET

1шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

8шт.

13

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

6шт.

14

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

12шт.

15

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

12шт.

16

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

2шт.

17

84494067

ENGINE

1шт.

17

84494067R

1шт.

17

84494067C

Return Part Number

1шт.

17

84494067ER

REMAN-REPLACEMENT EN

1шт.

17

84494067EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

18

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

6шт.

19

86639145

BOLT,Hex, M20 x 130mm, Cl 10.9

2шт.

20

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

21

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

23

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

4шт.

25

47438237

MEMBER

LH

1шт.

26

47459029

BRACKET

Center

1шт.

27

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

6шт.

28

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

29

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

30

337475

NUT,M12, Cl 10

4шт.

31

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

32

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

33

8605784

STARTING MOTOR

1шт.
